Laser welding is an advanced technology that is transforming the manufacturing industry. With its many advantages, including ease of use, reduced heat affected zone and the ability to weld dissimilar metals, it is an ideal choice for many applications.
With our Vulcanus laser welding machines, you can be sure of a versatile tool that meets a wide range of industrial needs. Whether you are looking to join metals, clean surfaces or make precise cuts, our machines are ready to deliver top performance. Versatility is the key to getting maximum value from a single machine. Choose our advanced laser technology to take your production to the next level.
Here are the details of our laser welding machines and their many functions.

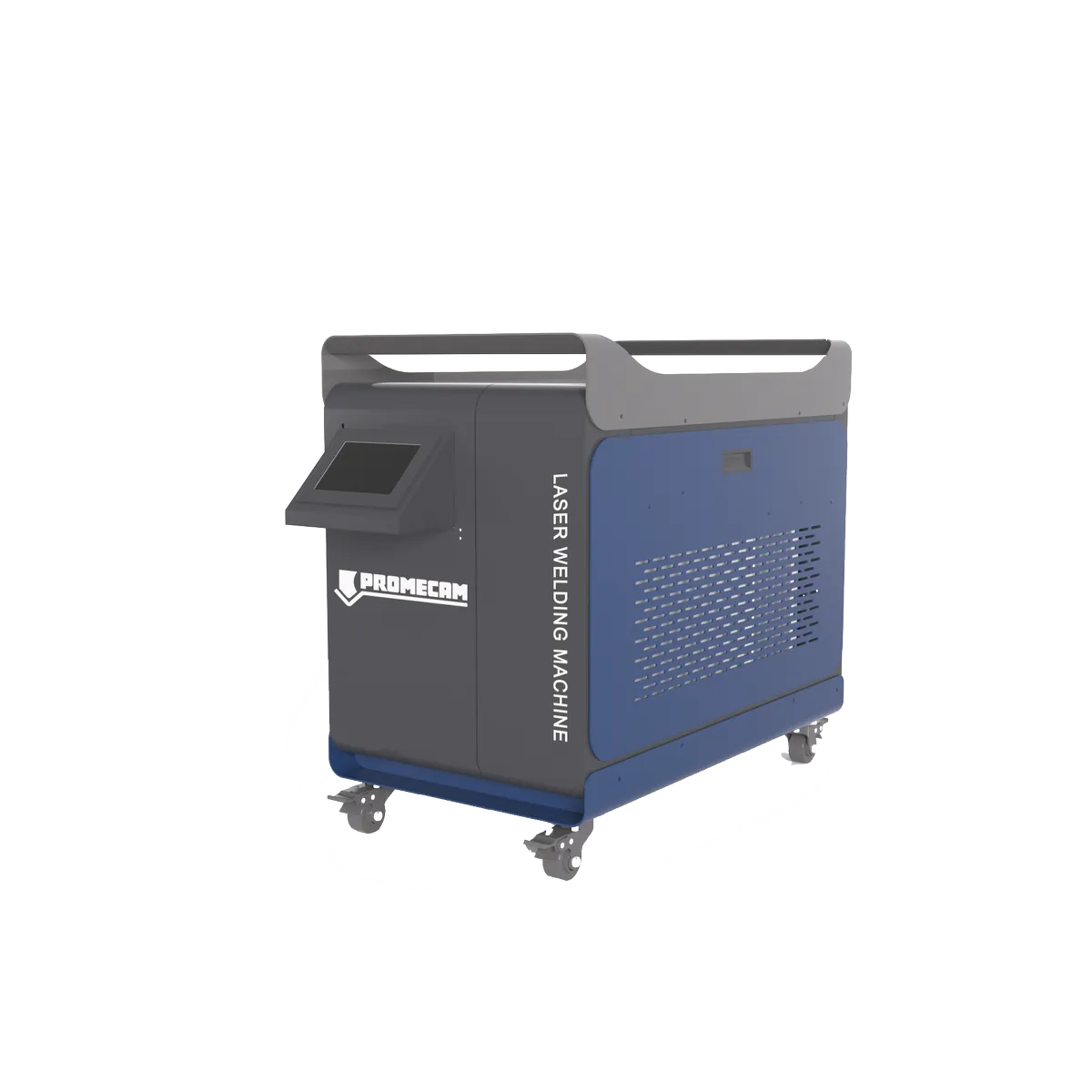

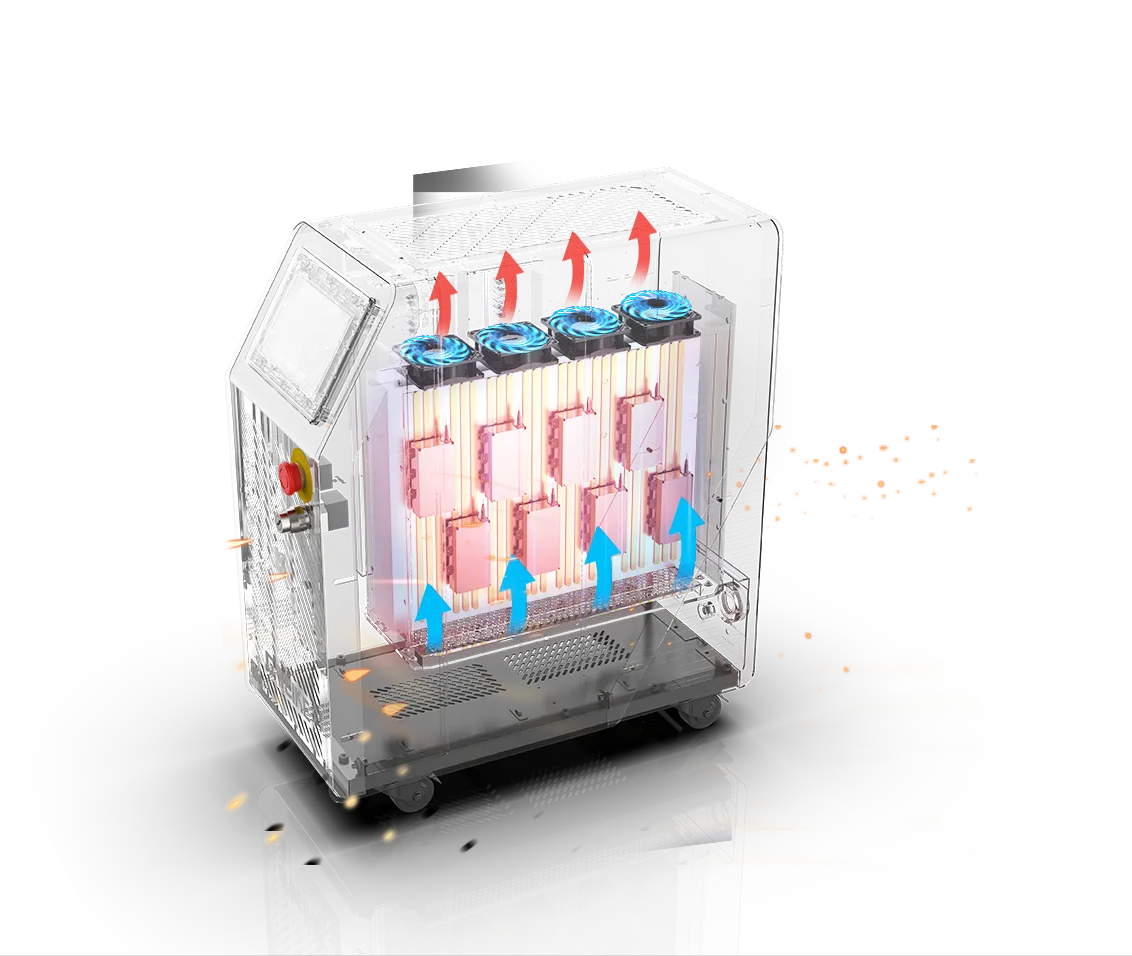

Our machines are liquid-cooled, without cooling units with dangerous refrigerant gases. They are equipped with wire pusher units for welding where filler metal is required. Our laser welding machines are available in four different power ratings: 1 kW, 1.2 kW (Air), 2 kW and 3 kW. This allows you to select the machine that best suits your specific needs.
| Model | Vulcanus Air | Vulcanus 1000 | Vulcanus 2000 | Vulcanus 3000 |
|---|---|---|---|---|
| Laser power [W] | 1200 | 1000 | 2000 | 3000 |
| Wavelength [nm] | 1064 | 1064 | 1064 | 1064 |
| Cooling | forced air | liquid | liquid | liquid |
| Wire speed [cm/min] | 40÷600 | 40÷600 | 40÷600 | 40÷600 |
| Wire diameter [mm] | 0,8 / 1,0 / 1,2 / 1,6 | 0,8 / 1,0 / 1,2 / 1,6 | 0,8 / 1,0 / 1,2 / 1,6 | 0,8 / 1,0 / 1,2 / 1,6 |
| Power consumption [kW] | 8 | 8 | 13 | 17 |
| Supply voltage [Vac] | 230 | 230 | 230 | 230 |
| Approx. dimensions [mm] | 580×275×680 | 1260×750×1260 | 1260×750×1260 | 1260×750×1260 |
| Approx. weight [kg] | 55 | 250 | 250 | 250 |

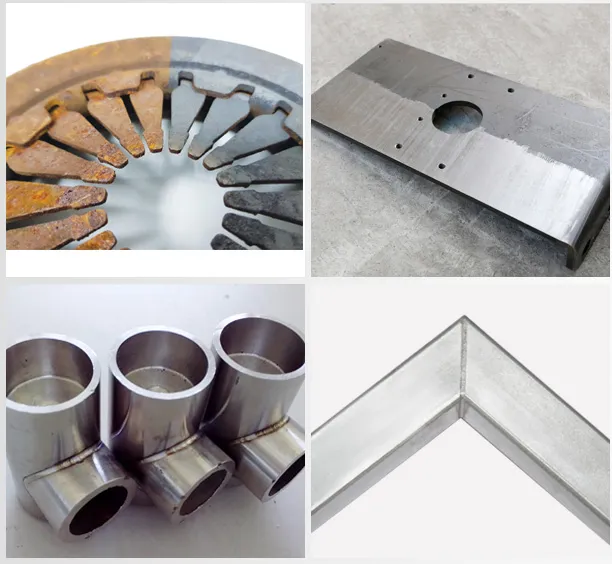

Our laser welding machines offer three essential functions, making them extremely versatile. Laser welding is only the beginning. Our machines can also be used for laser cleaning and laser cutting. This means that with one machine, you can handle a variety of applications, saving time and resources.
Safety is paramount when it comes to laser machines. Our machines are CE certified and can be easily integrated with safety cabins or other perimeter guards. Interlock switches, warning lights and emergency release are provided, following the strict standards for class 4 lasers. You can use our machines with maximum confidence.
To ensure that you can exploit the full potential of our laser welding machines, we offer training courses and certifications in partnership with the Istituto Italiano di Saldatura (Italian Welding Institute). These courses will enable you to acquire the necessary skills to use our machines safely and efficiently. We invest in your training for your success.
Our machines are not limited to welding. They can also be used to clean materials from dirt, oxide, paint and oil thanks to the laser ablation cleaning mode. You can adjust the beam width and power to clean surfaces of contaminants without damaging the material underneath. This additional feature greatly enhances the versatility of our machines.
One of the most striking features of our laser welding machines is their versatility. In addition to laser welding and cleaning, our machines can also be used as a manual sheet metal cutting torch. This additional function allows you to make clean, flexible cuts in sheet metal and other materials, offering significant added value to your operations. The ability to easily switch between welding and torch cutting makes our machines an outstanding choice for your metalworking needs.
Thanks to the WATT sensorization platform, we can analyse machine operating patterns and extract a great deal of data that is very useful for statistical and business purposes.
We can determine the machining times and energy consumption per workpiece, or for a specific time interval. This allows you to know the progress of orders, the rate of machine utilisation and the cost of energy.
By interfacing with MES and ERP we automate data collection to help you make more accurate quotations and bring your company into Industry 5.0.
