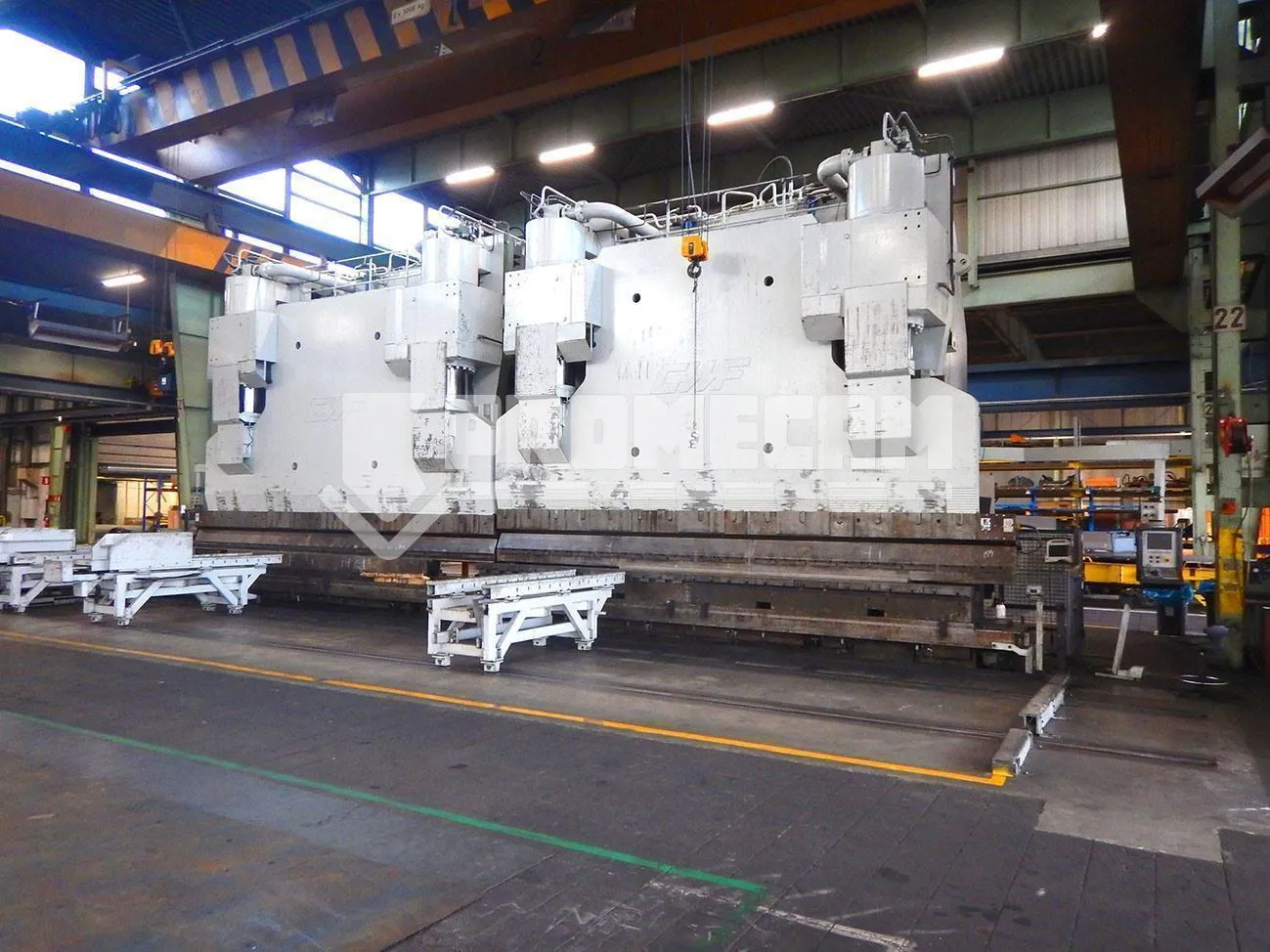

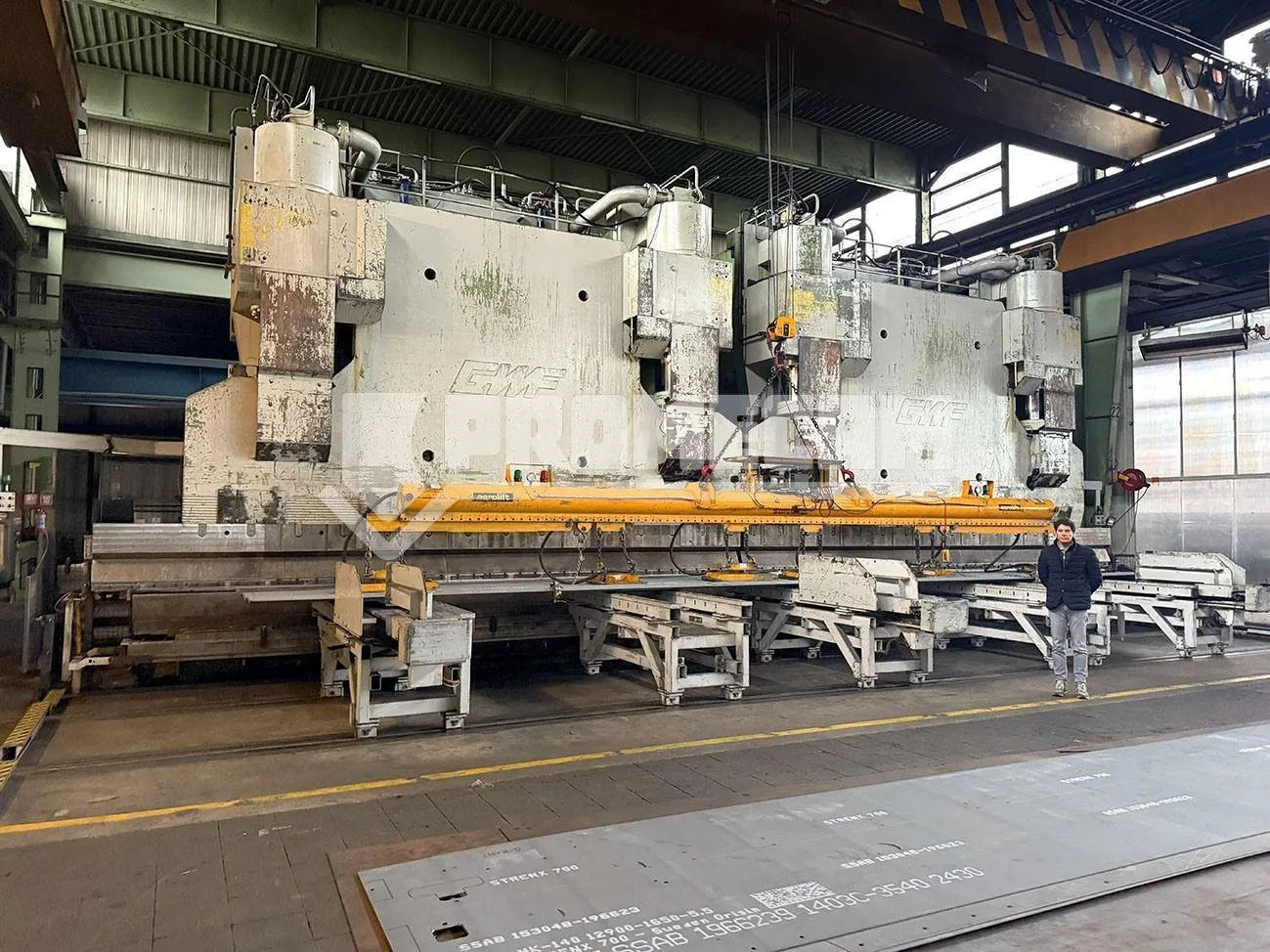

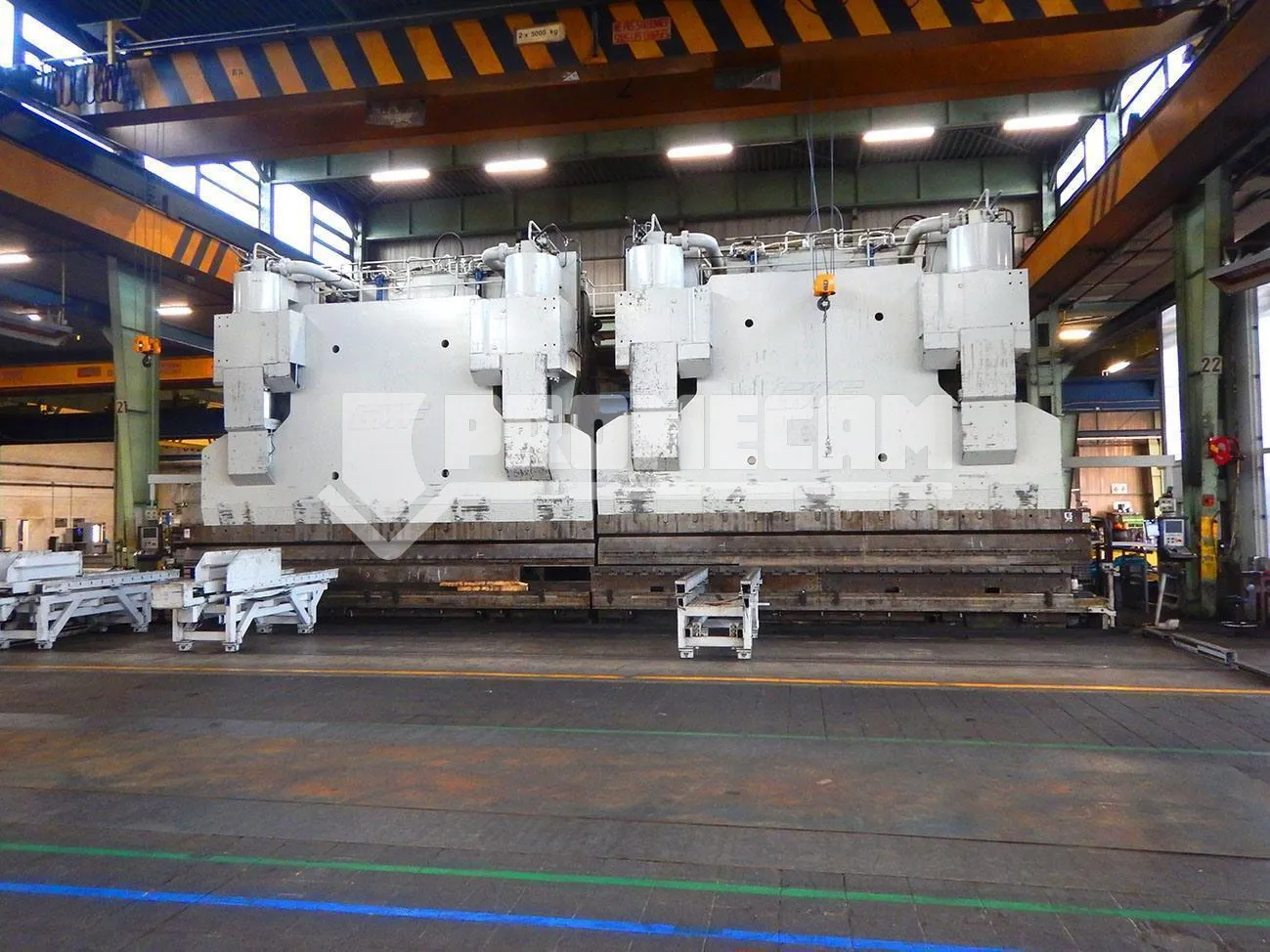

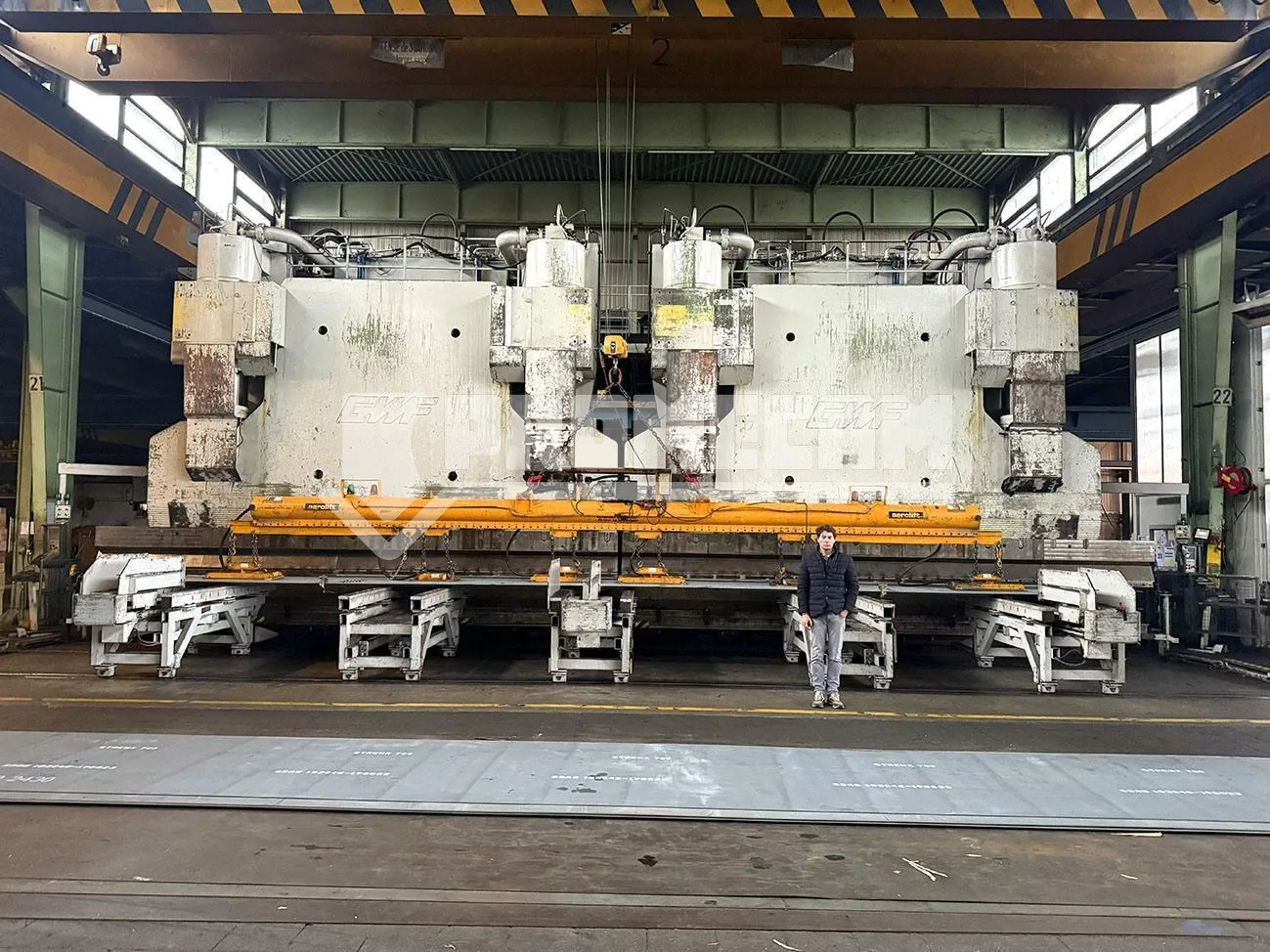

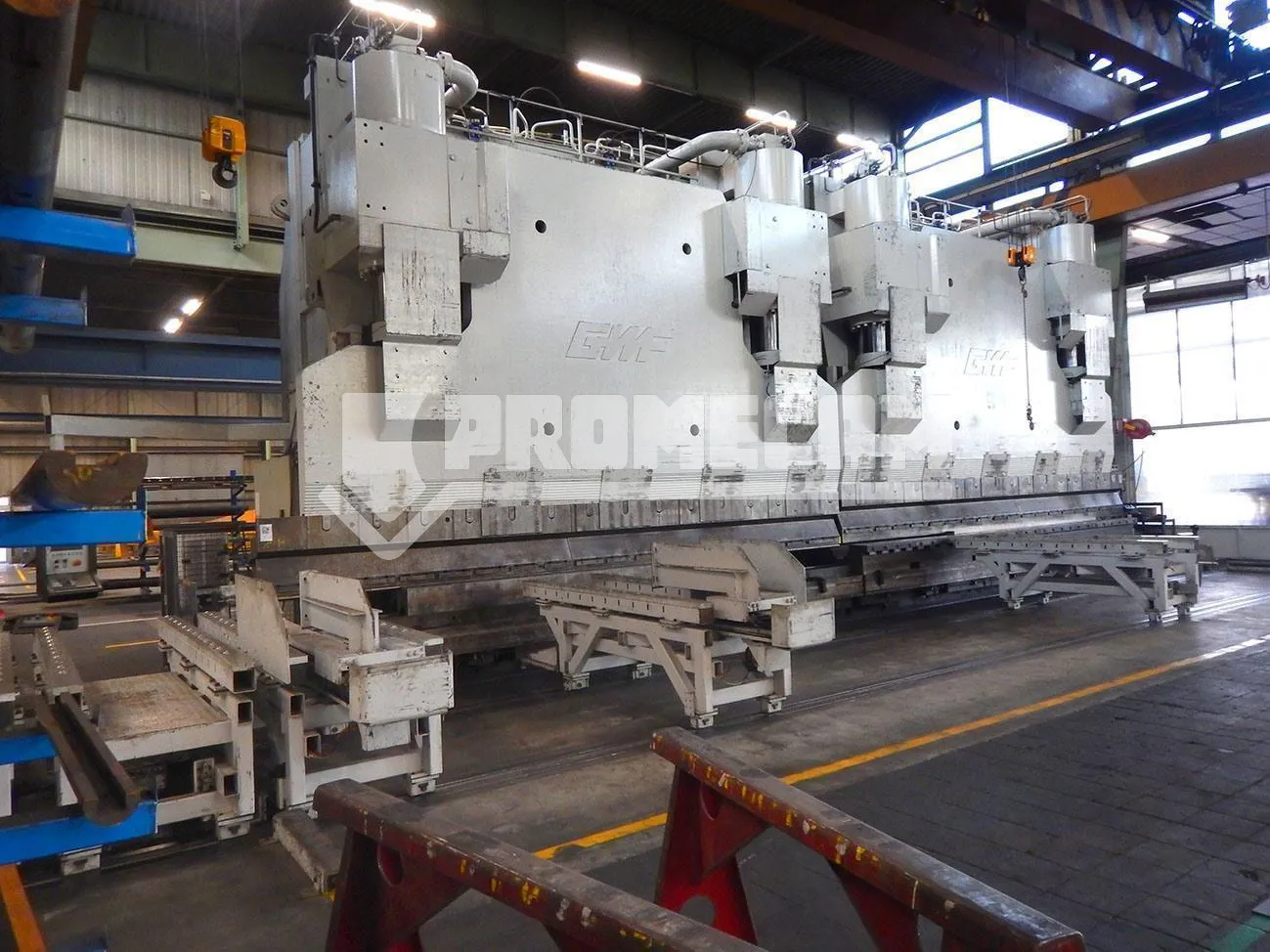

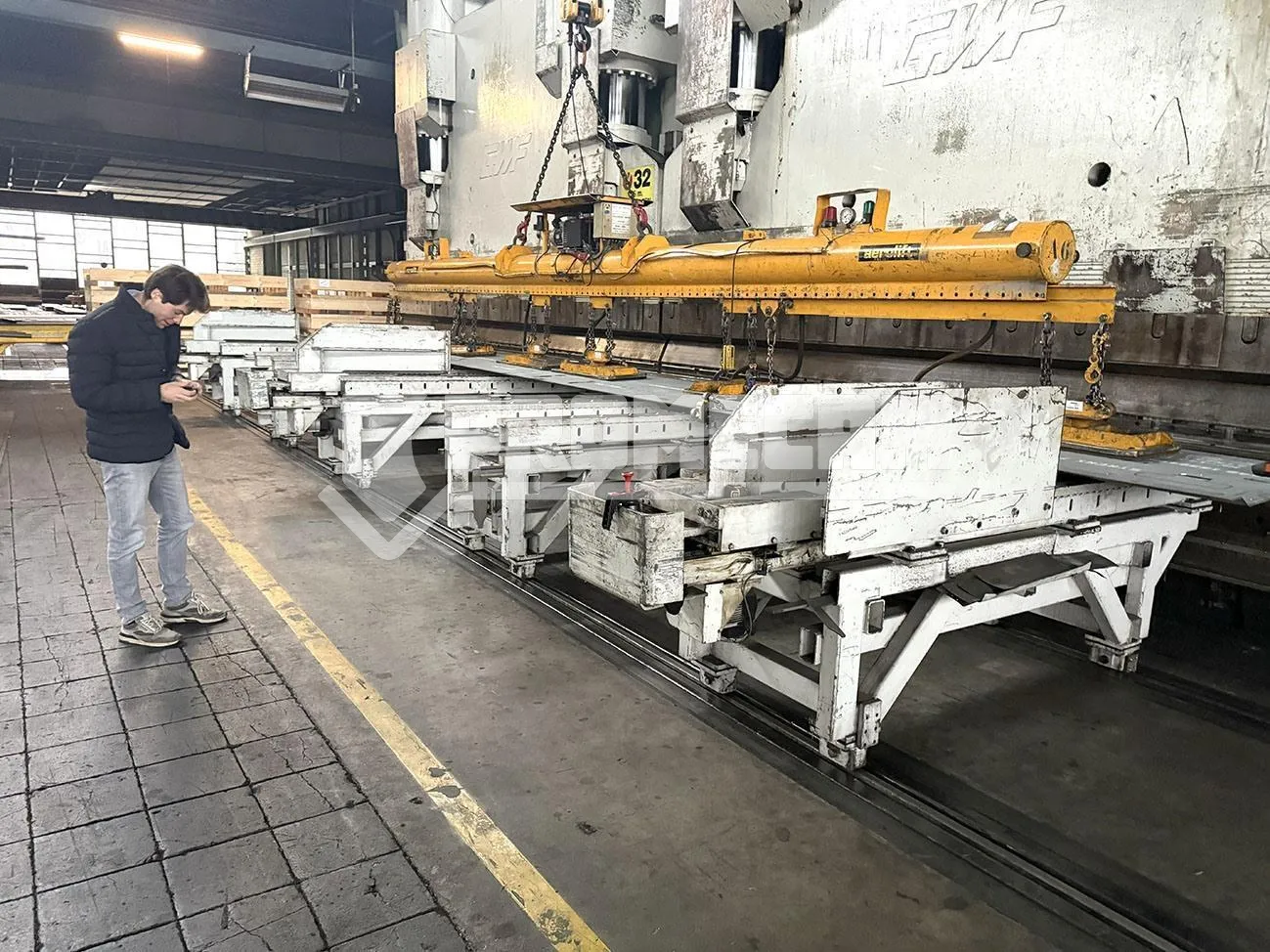

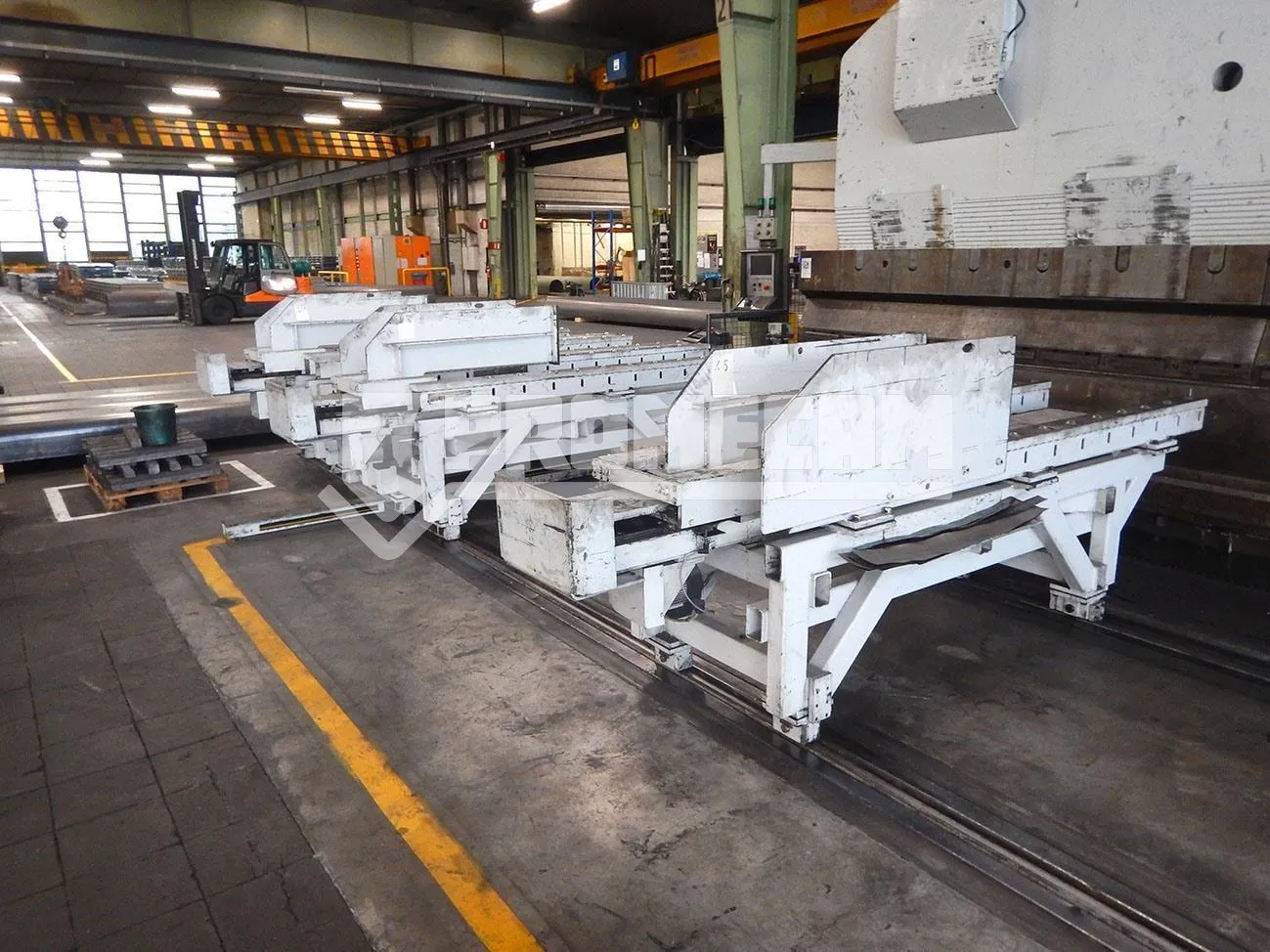

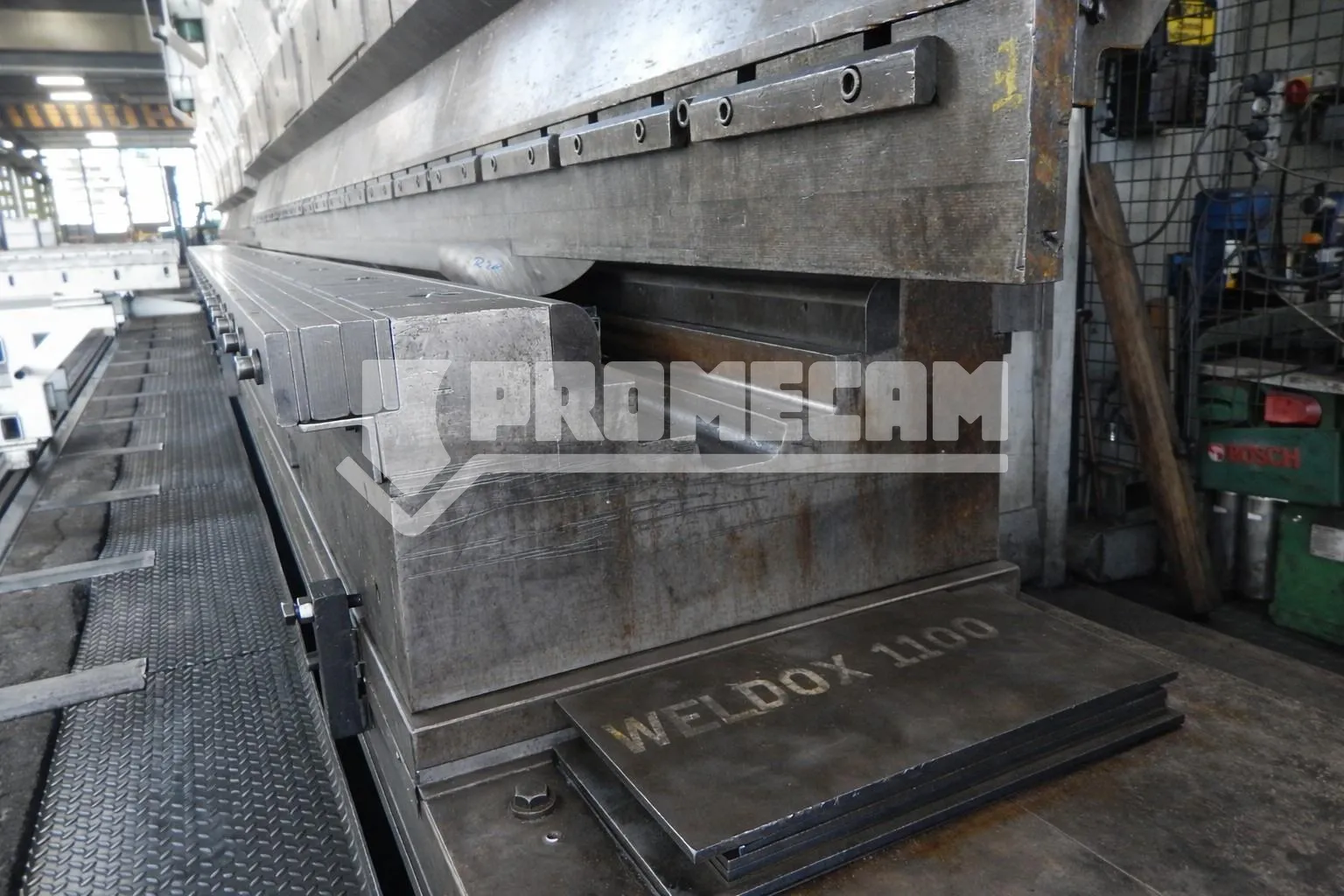

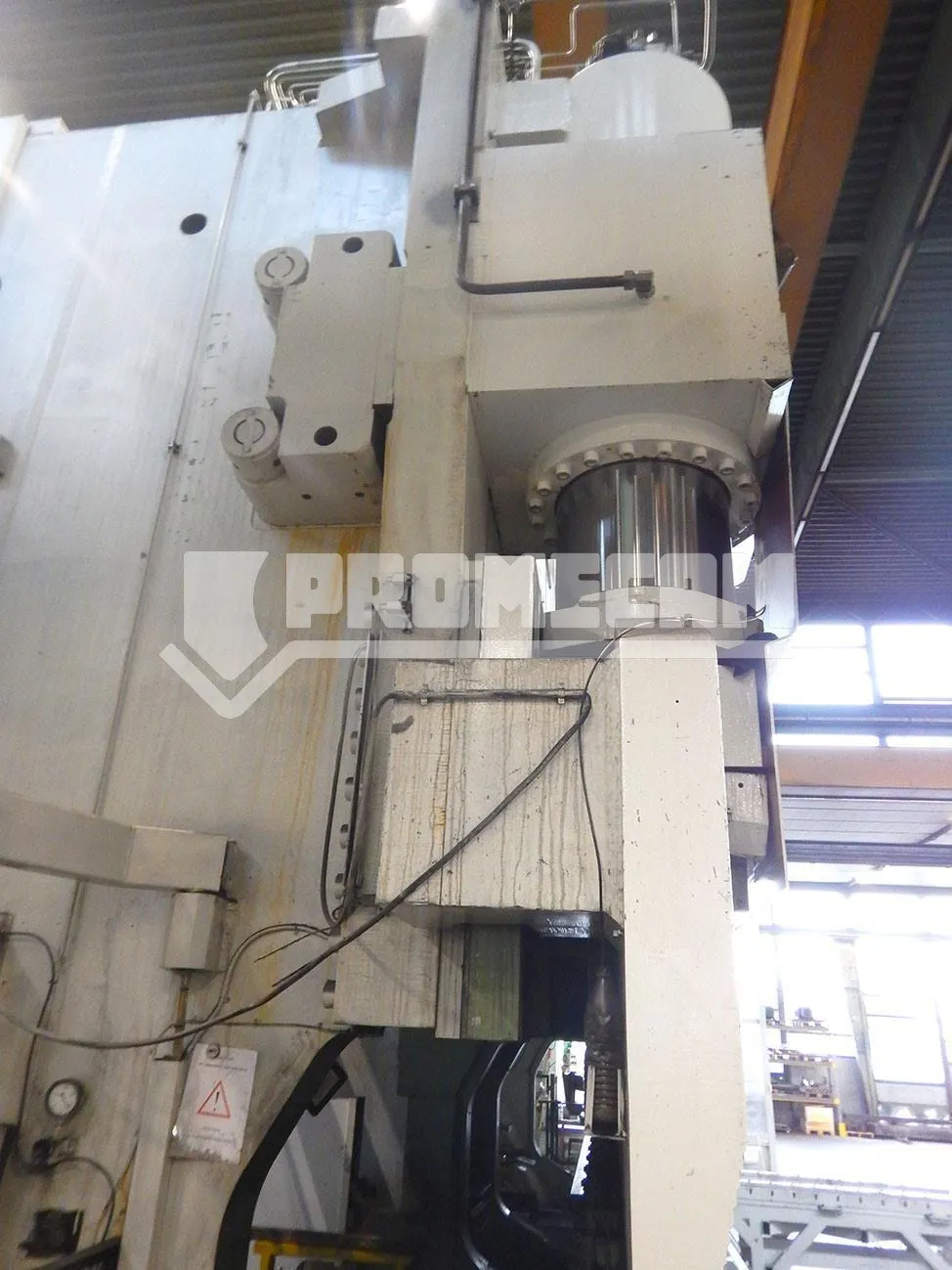

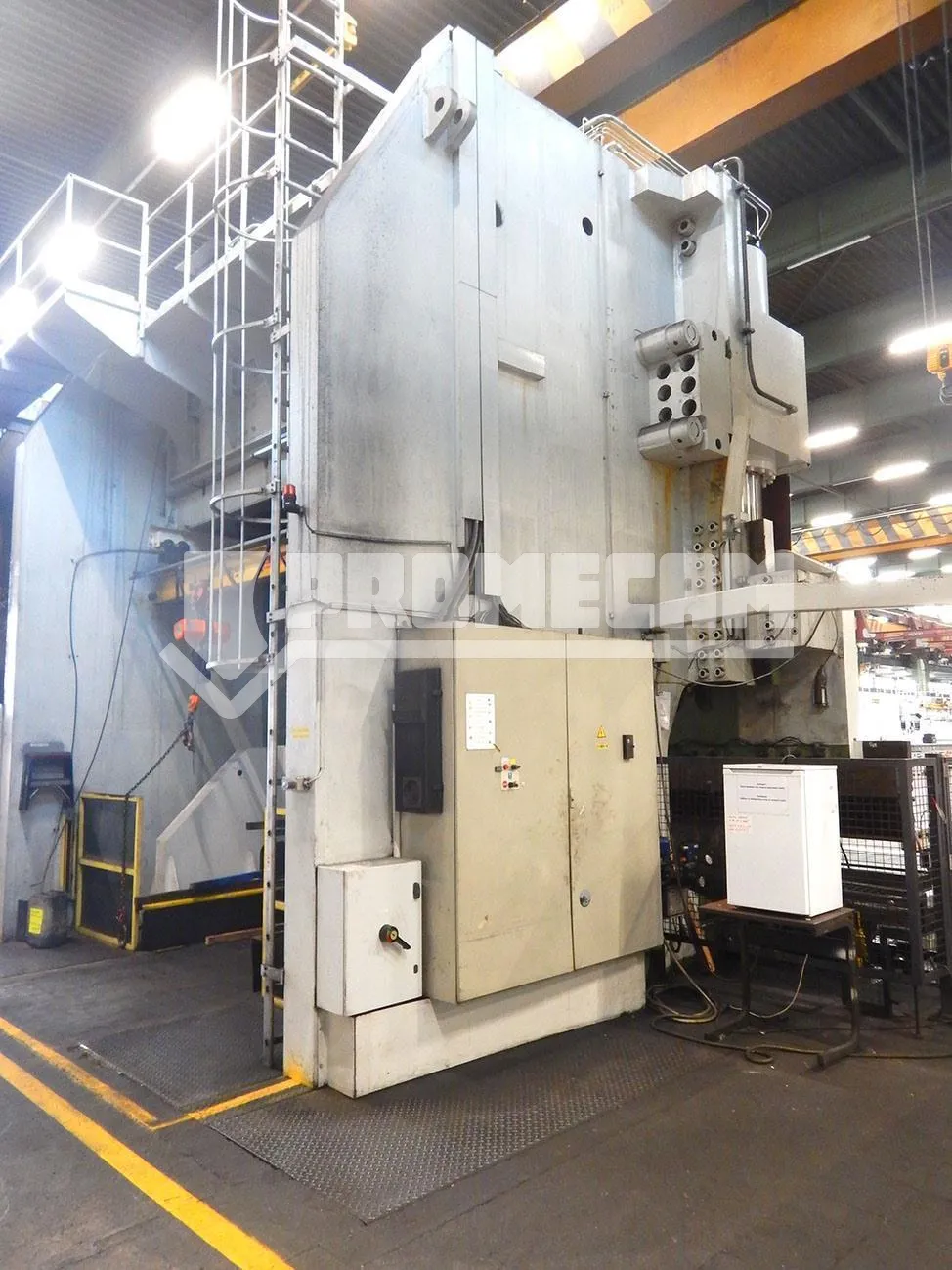

Very large tandem press brake, ideal for crane booms, beams, poles, etc.
The machine is currently fully functional and there are no issues.
| Characteristic | Value | Unit |
|---|---|---|
| Bending force | 2× 2000 | t |
| Bending length | 2× 8100 | mm |
| Y axis stroke | 1000 | mm |
| Distance between side frames | 2× 4600 | mm |

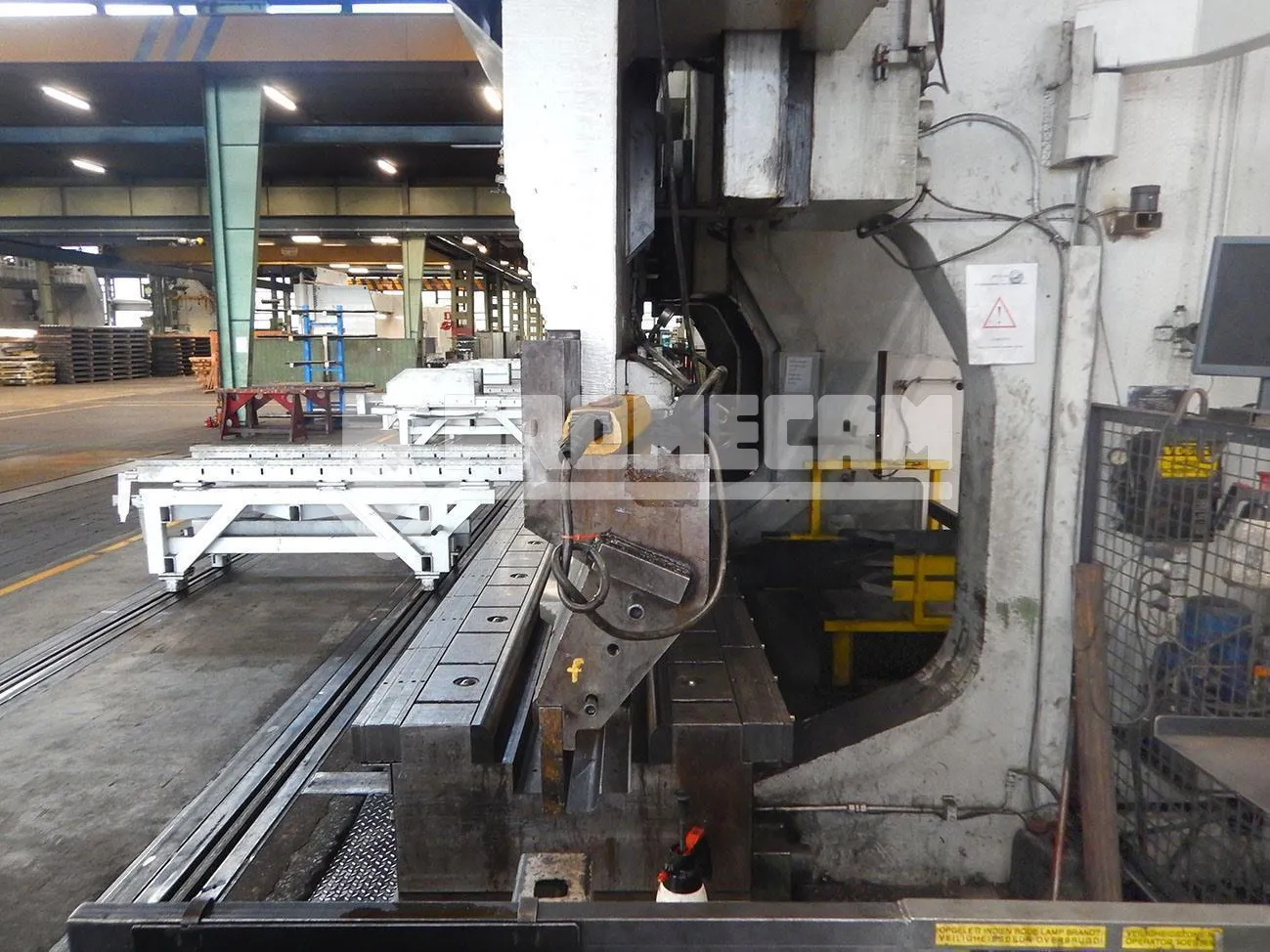

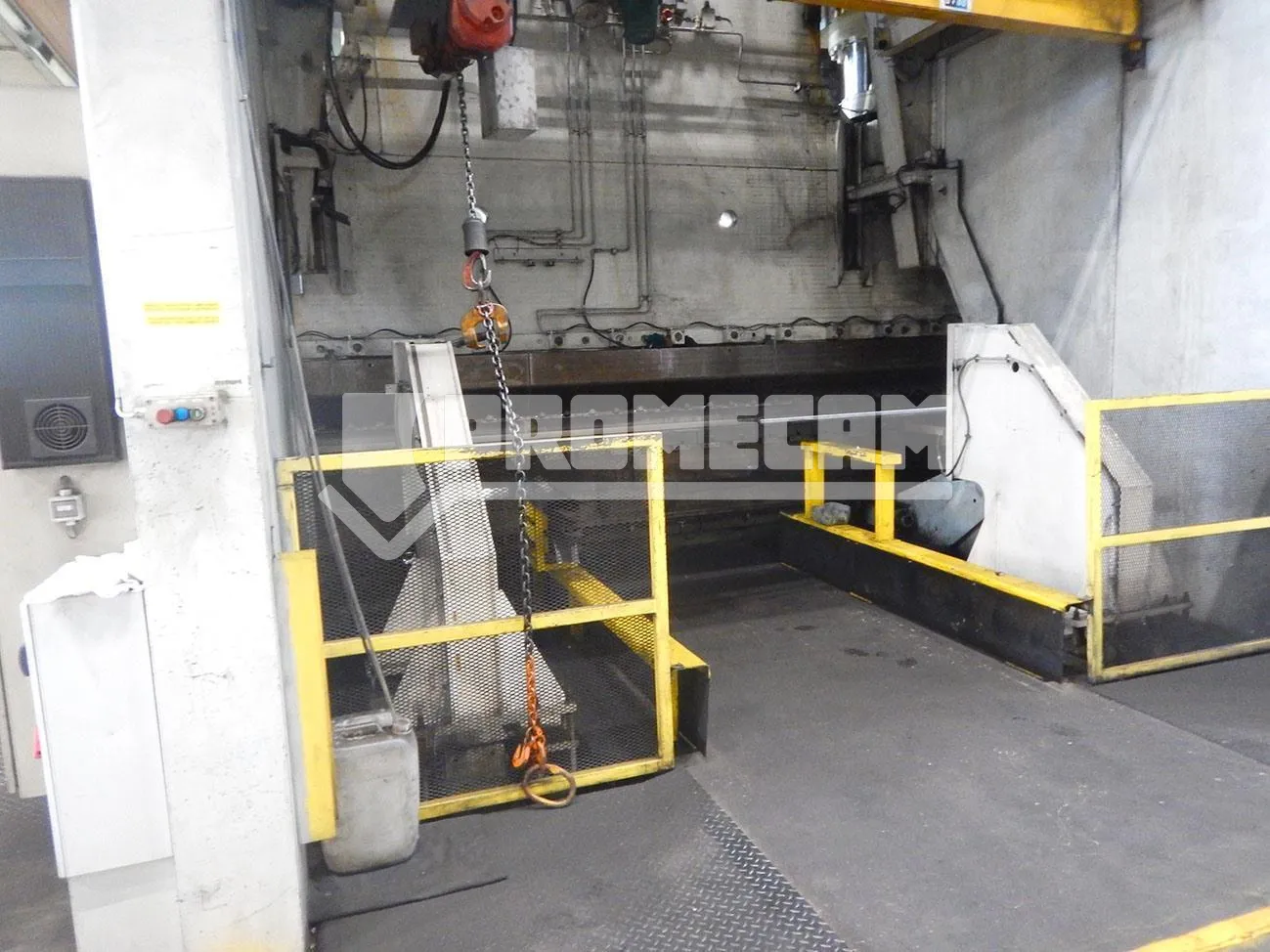

| Throat | 1250 | mm |
| Bench-upper ram open height | 1650 | mm |
| Y axis descent speed | 70 | mm/s |
| Y axis working speed | 4÷7,5 | mm/s |
| Y axis return speed | 75 | mm/s |
| Total axes | Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / X5 / R1 / R2 / R3 / R4 | |
| Supply voltage | 380 | Vac |
| Main motor total power | 150 | kW |
| Total weight | 500 | t |
| Approximate dimensions (above floor level) | 18000×5000×6400 | mm |
