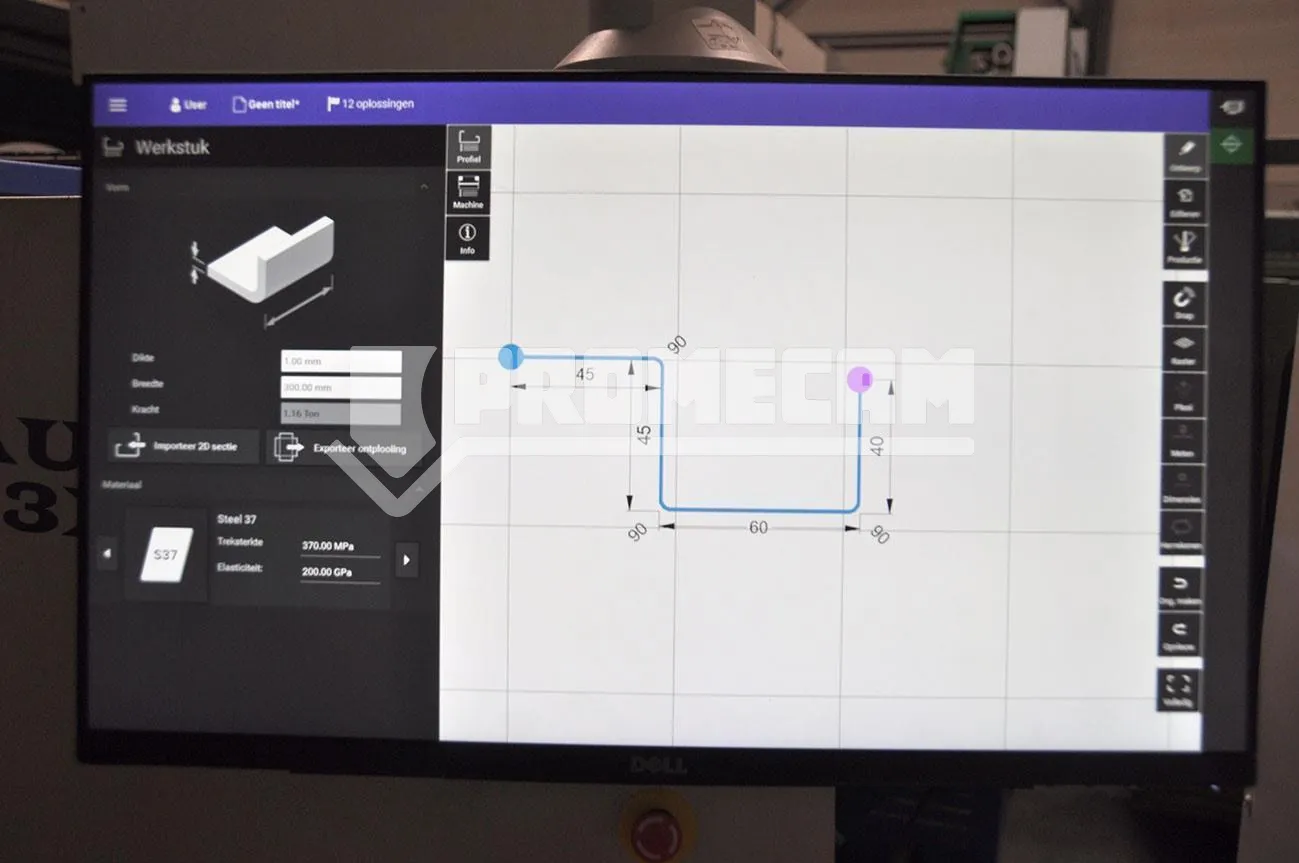

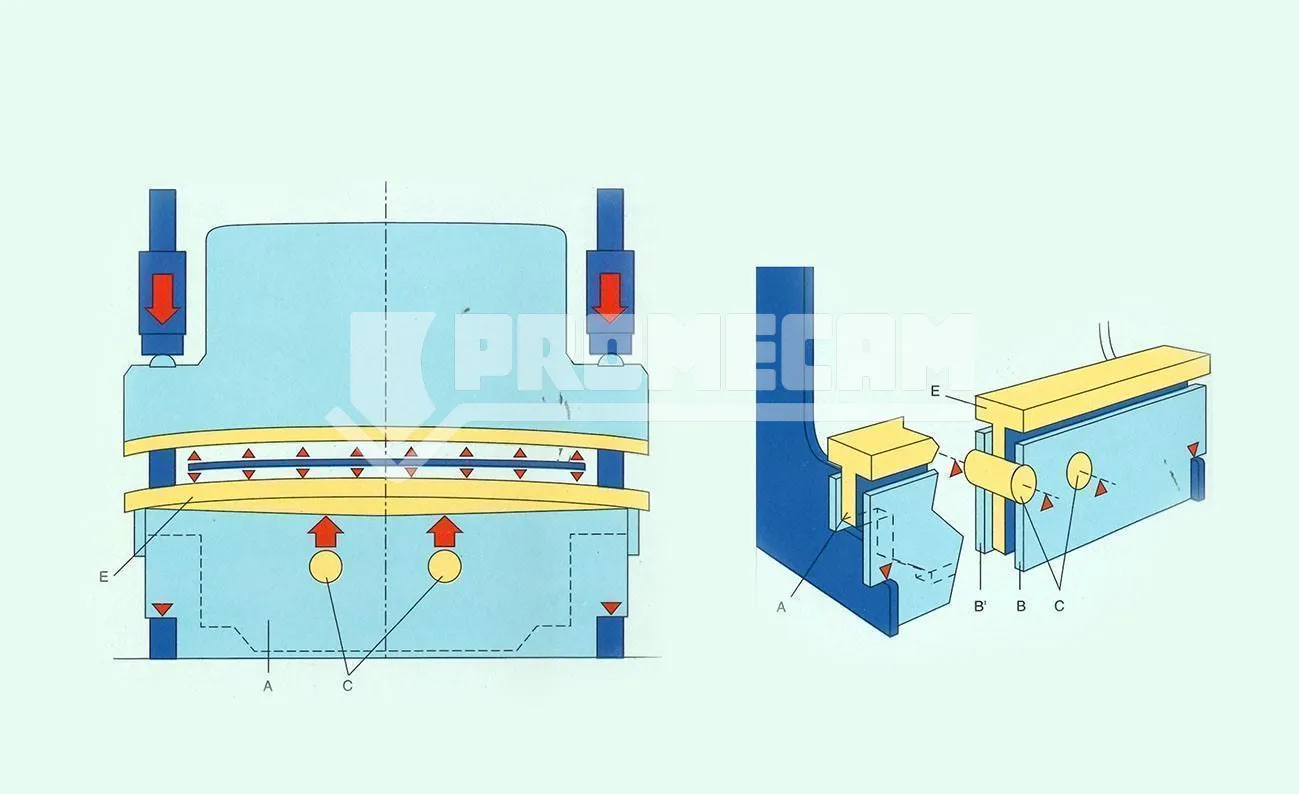

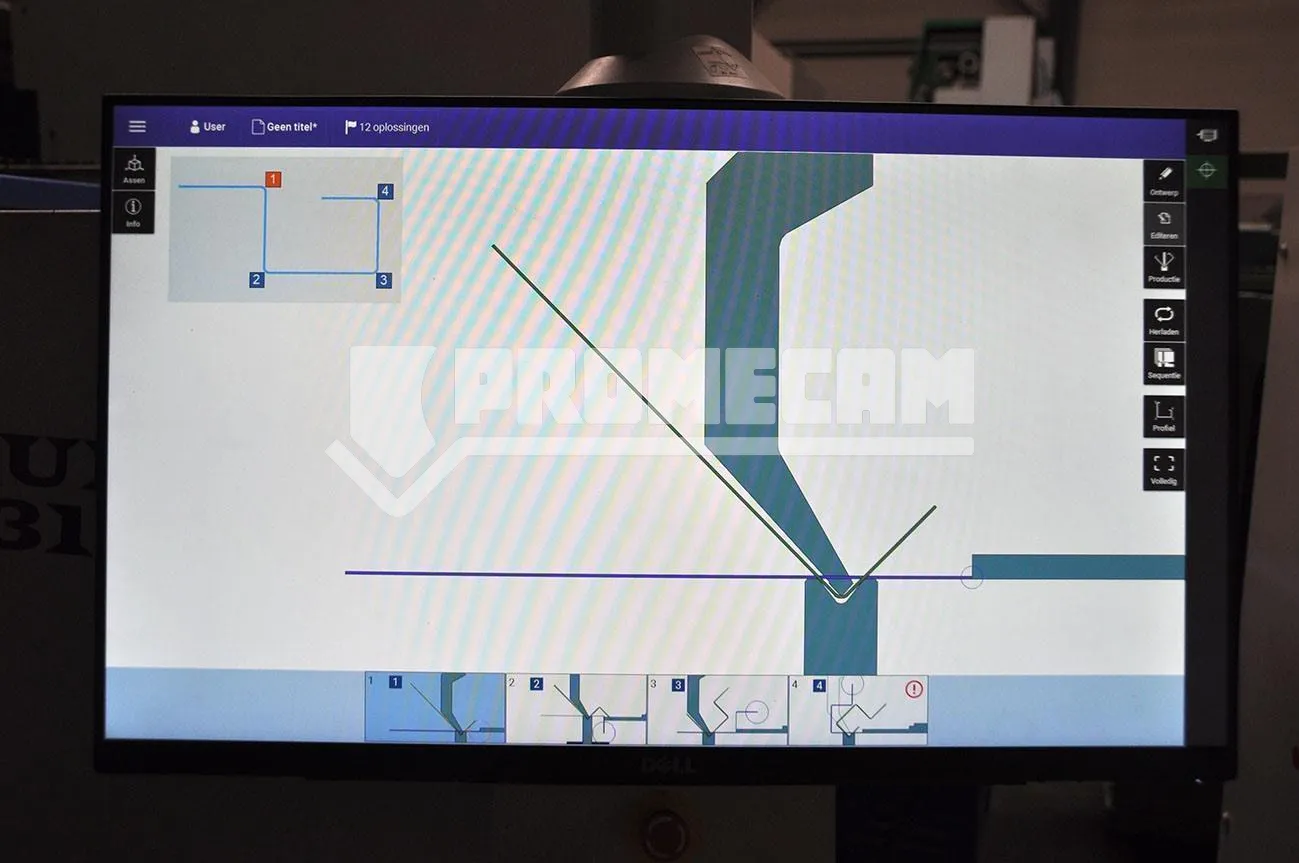

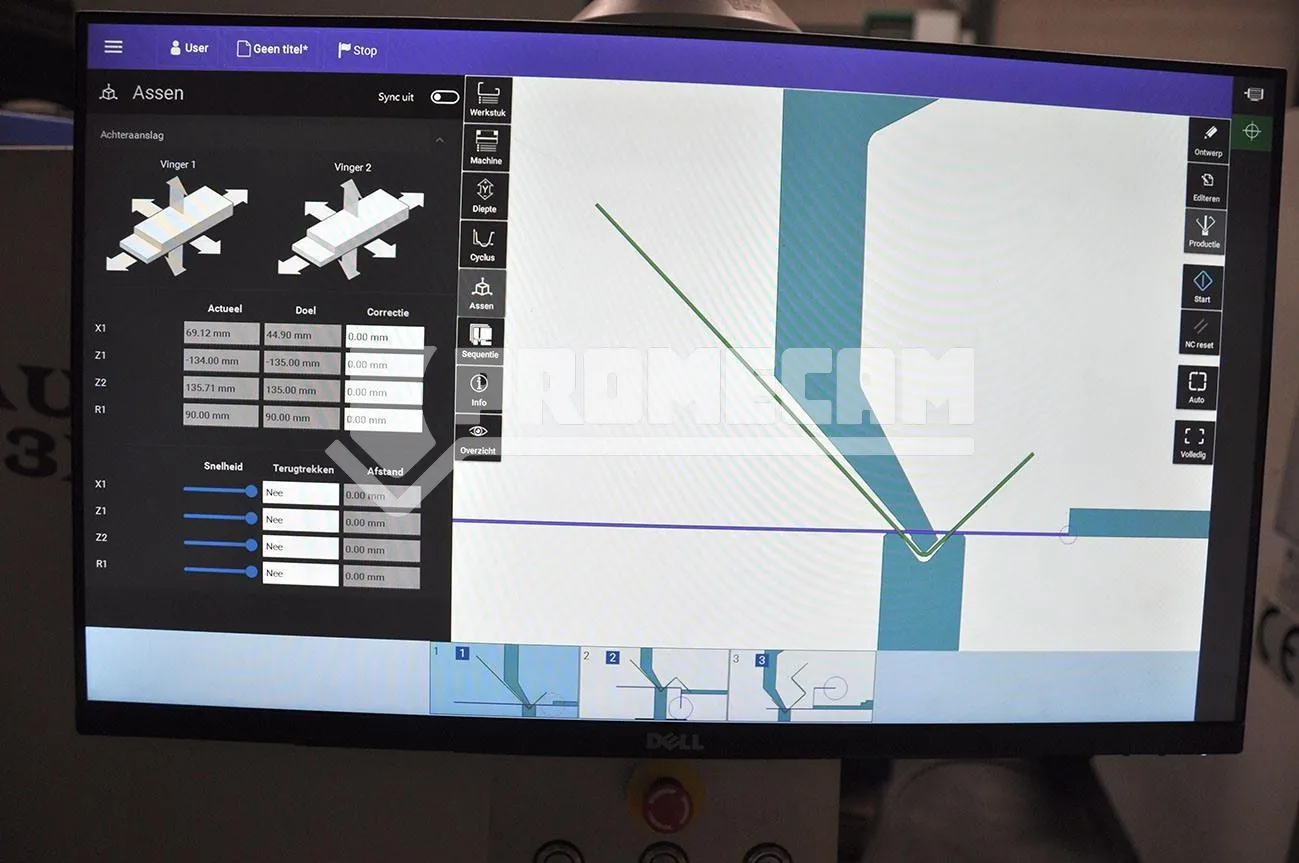

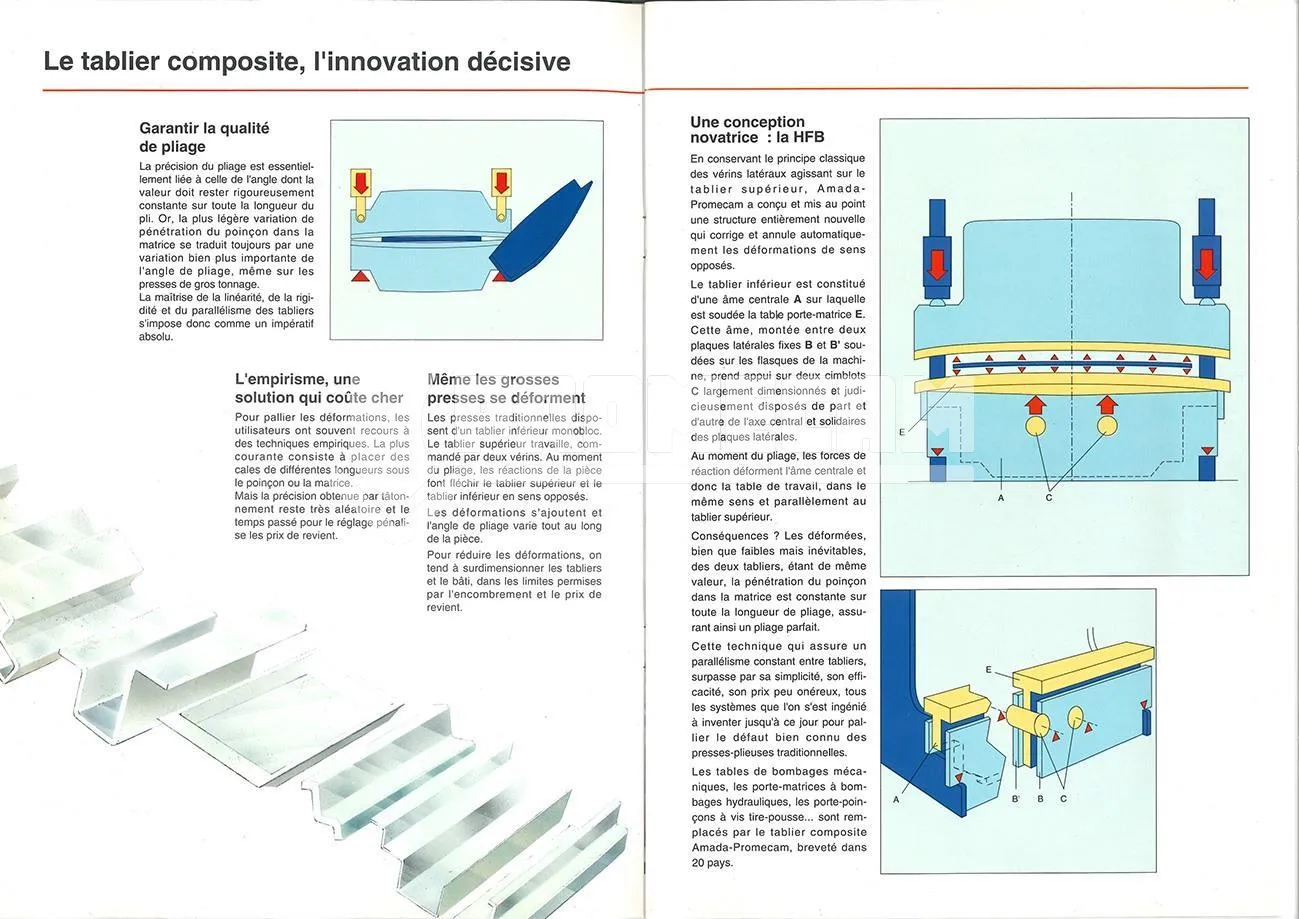

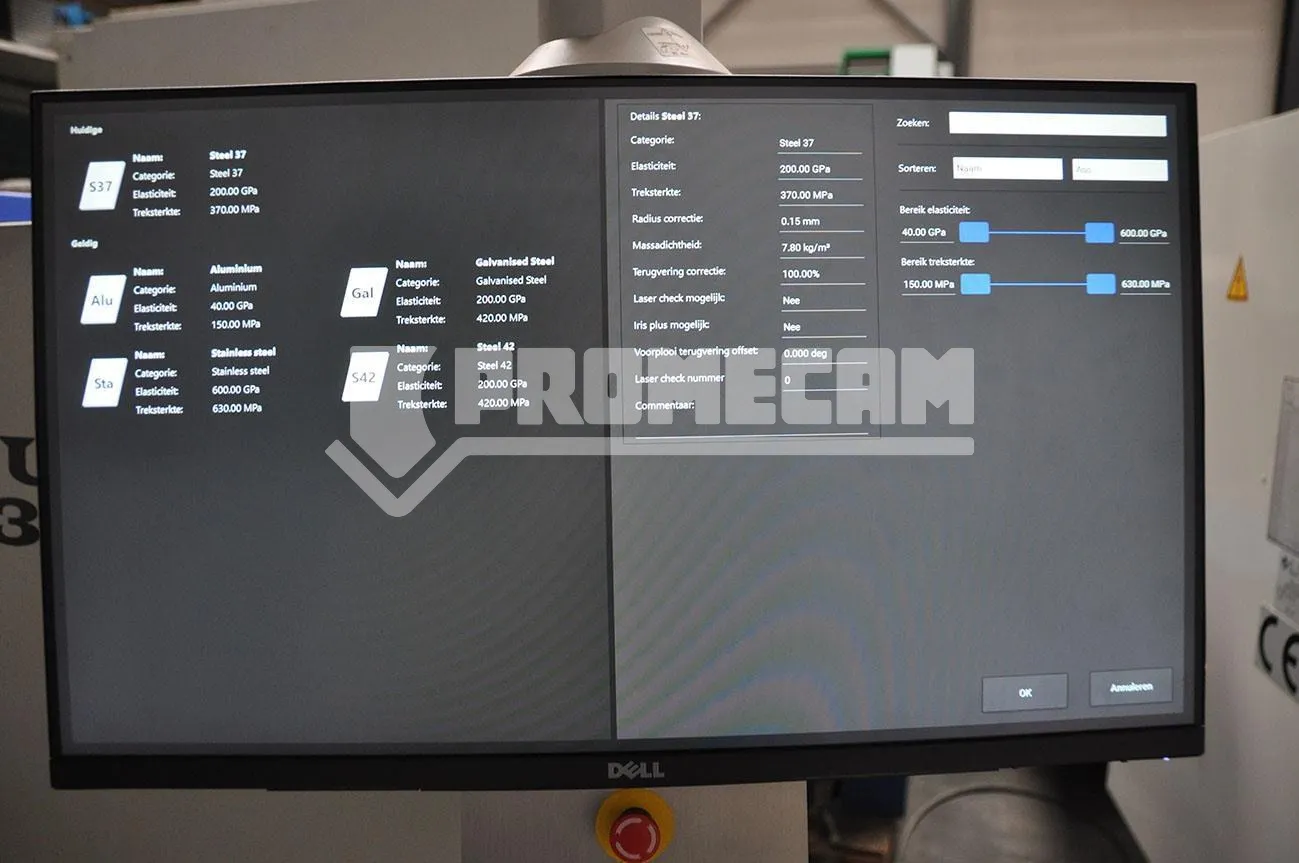

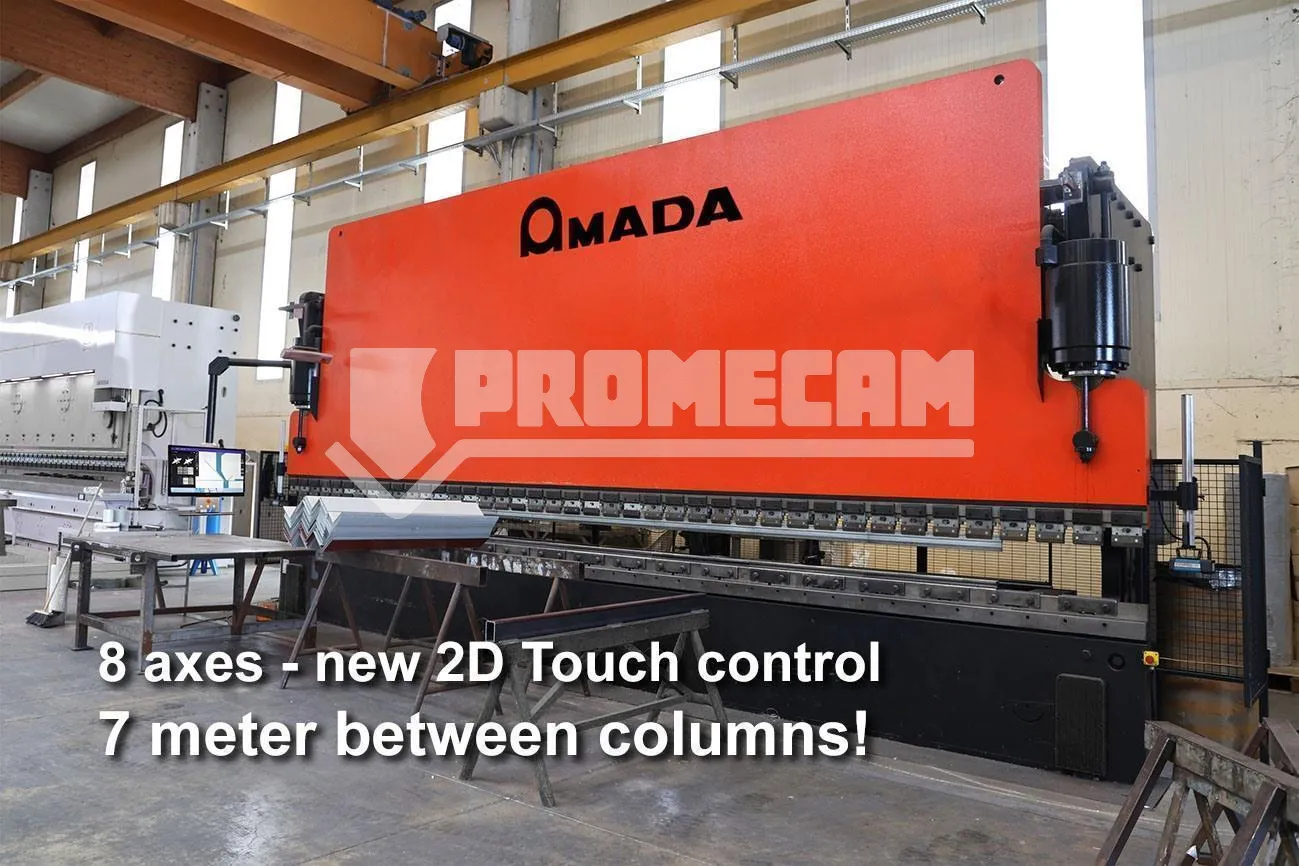

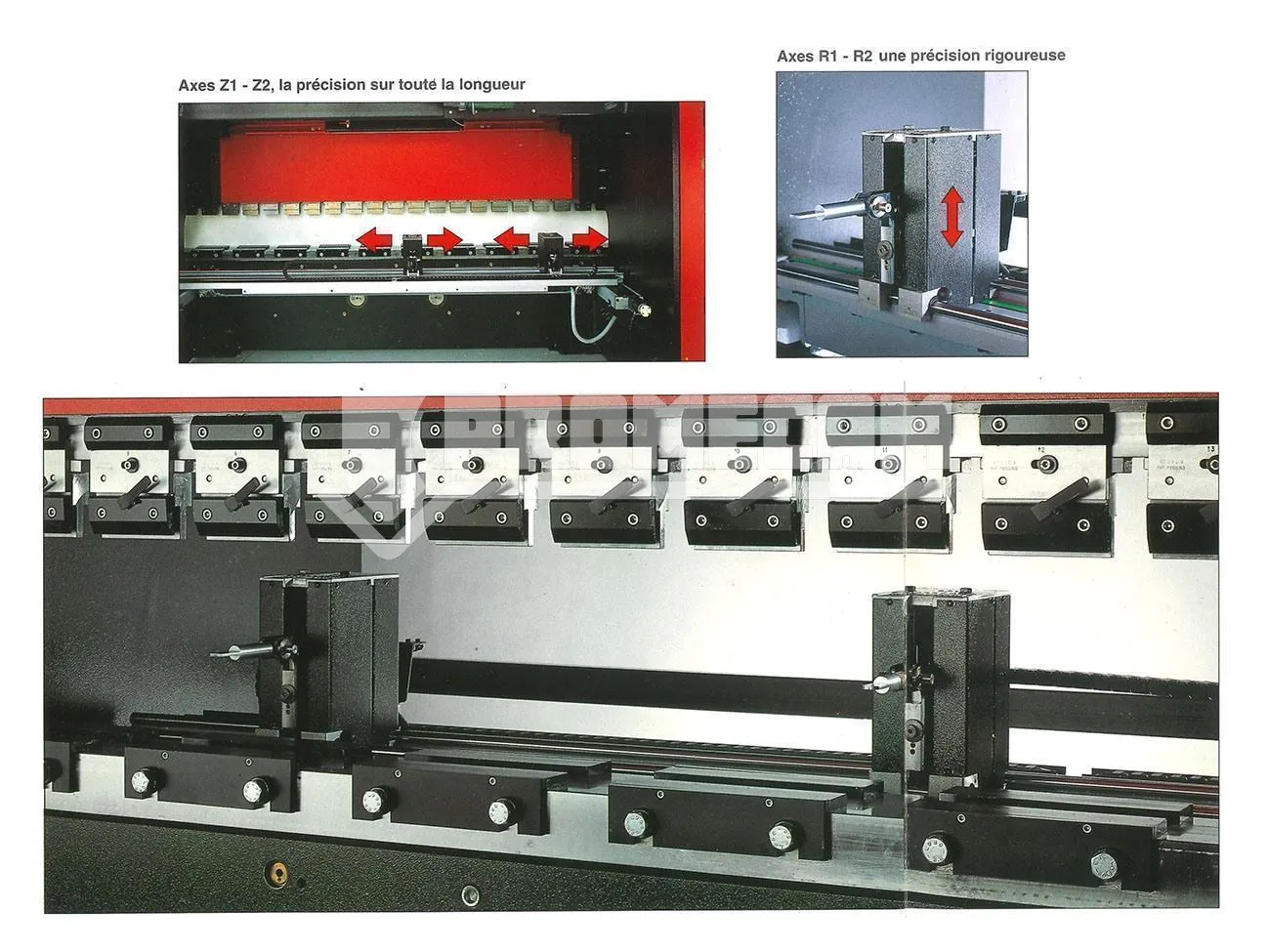

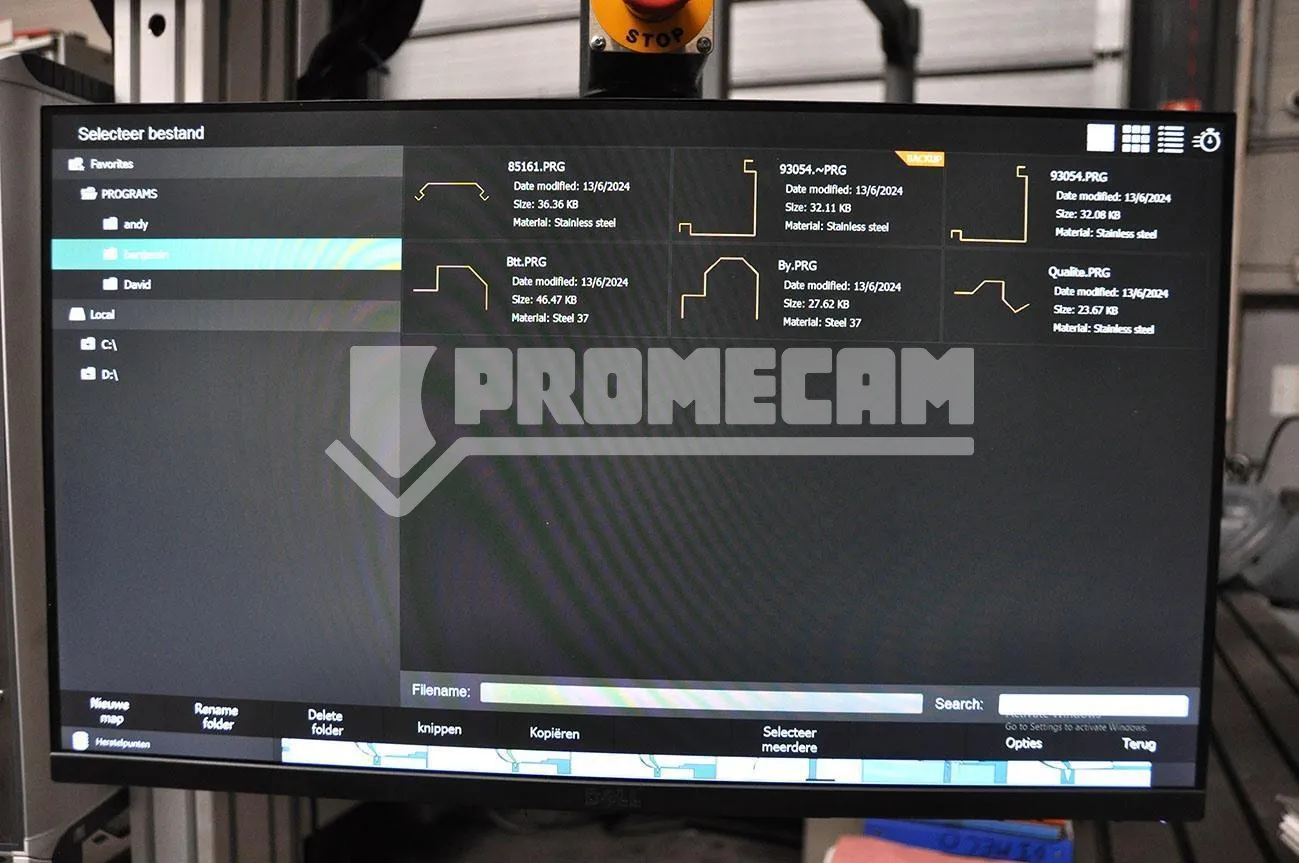

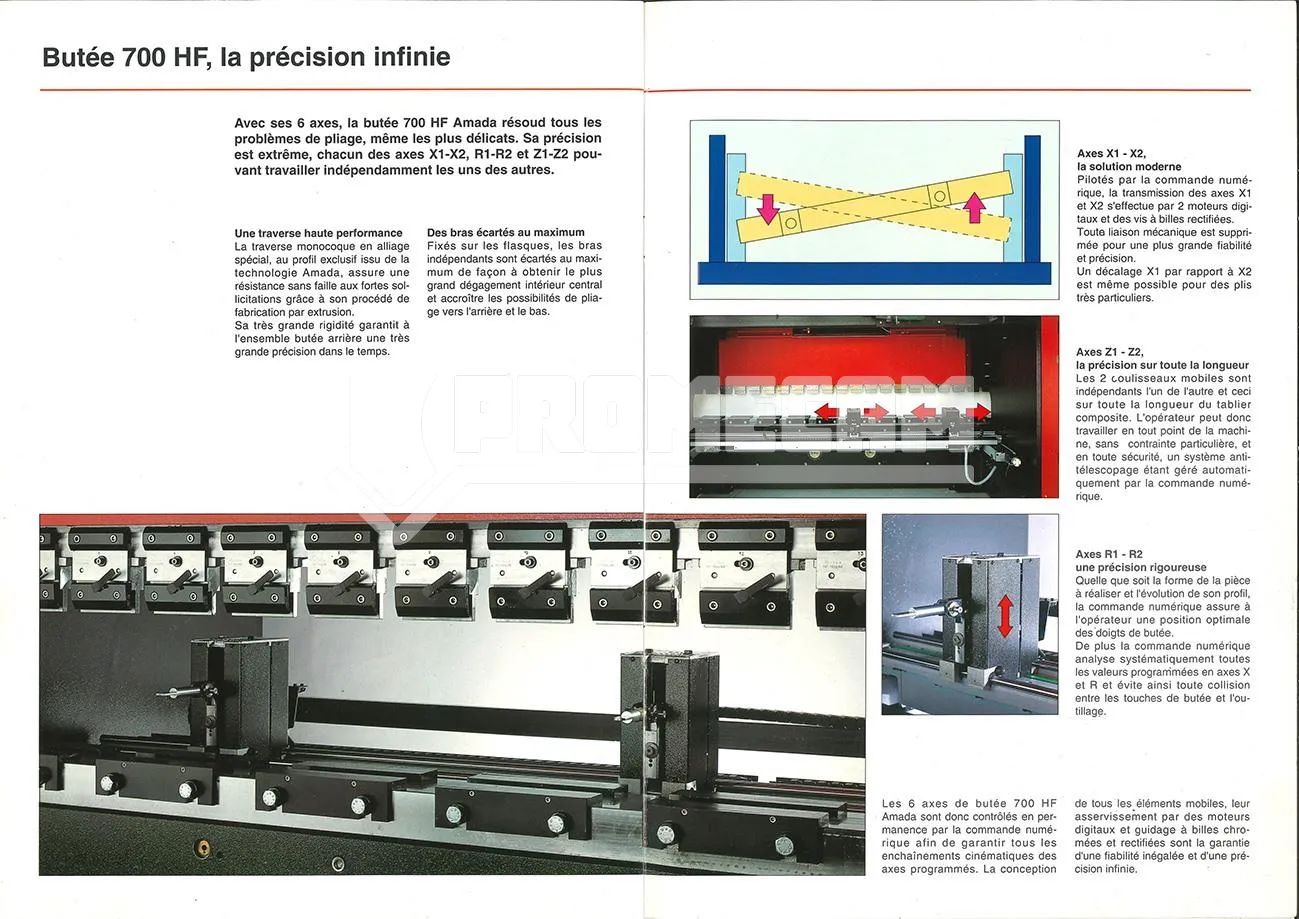

This advanced press brake stands out for its control of 8 axes (Y1, Y2, X, R1, R2, Z1, Z2, V), interfaced via the new 2D Touch graphical controls. The machine is equipped with a robust backgauge and an Amada crowning system dedicated to the V-axis, features that ensure high precision during machining. At the operational level, a new laser safety system has also been integrated to protect the operator. A further logistical advantage is its modular design: the machine can be easily dismantled into several parts to allow for practical and efficient transport within standard containers.
| Bending force | 630 t |
|---|---|
| Bending length | 8100 mm |
| Distance between uprights | 7210 mm |
| Y axis stroke | 300 mm |
| Open height | 650 mm |
| Throat | 400 mm |
| Table width | 350 mm |
| Y downward speed | 70 mm/s |
| Y bending speed | 7 mm/s |
| Y upward speed | 55 mm/s |
| Main motor power | 47 kW |
| Length | 8400 mm |
| Depth | 3100 mm |
| Height | 4620 mm |
| Weight | 90 t |
