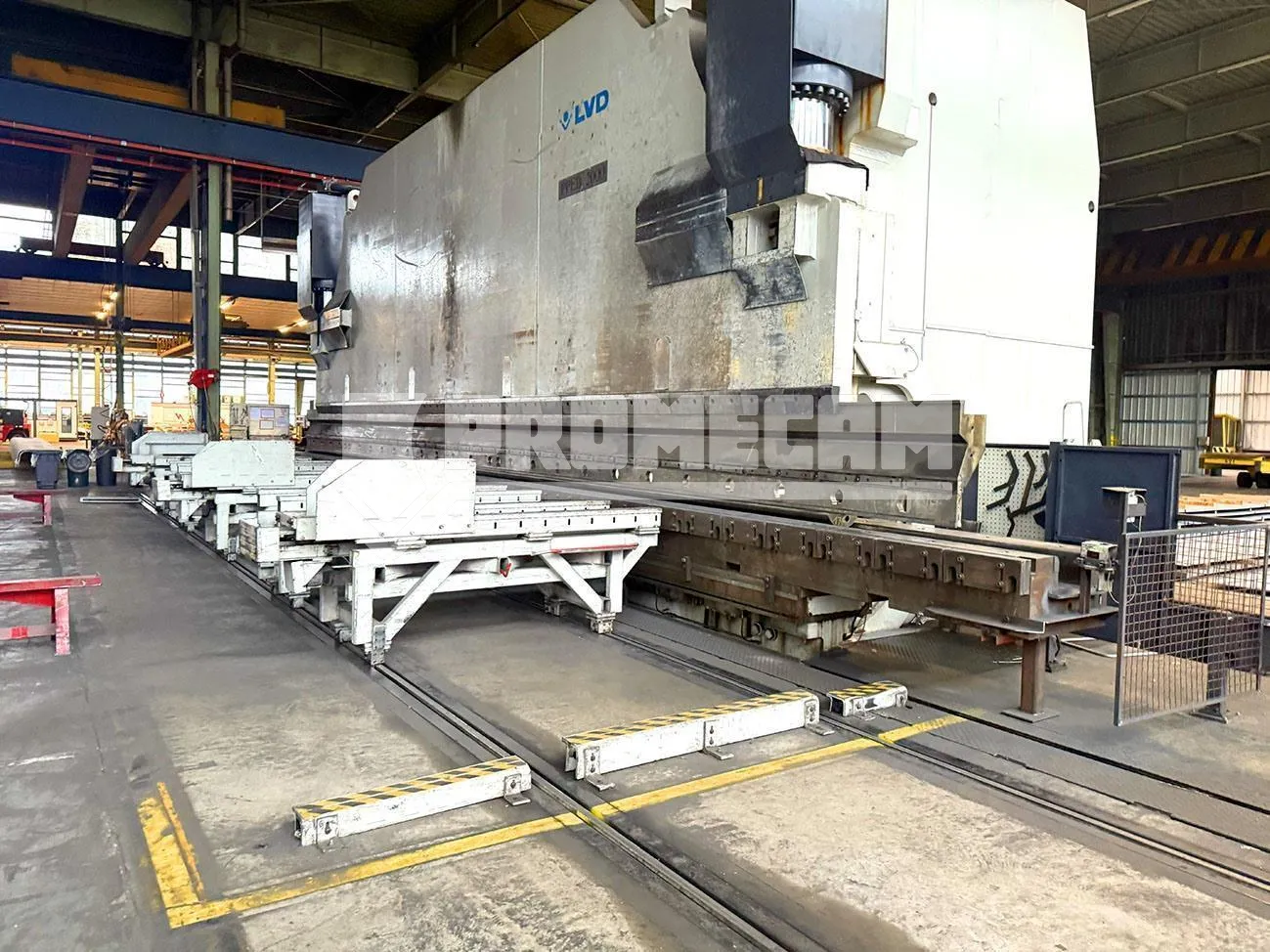

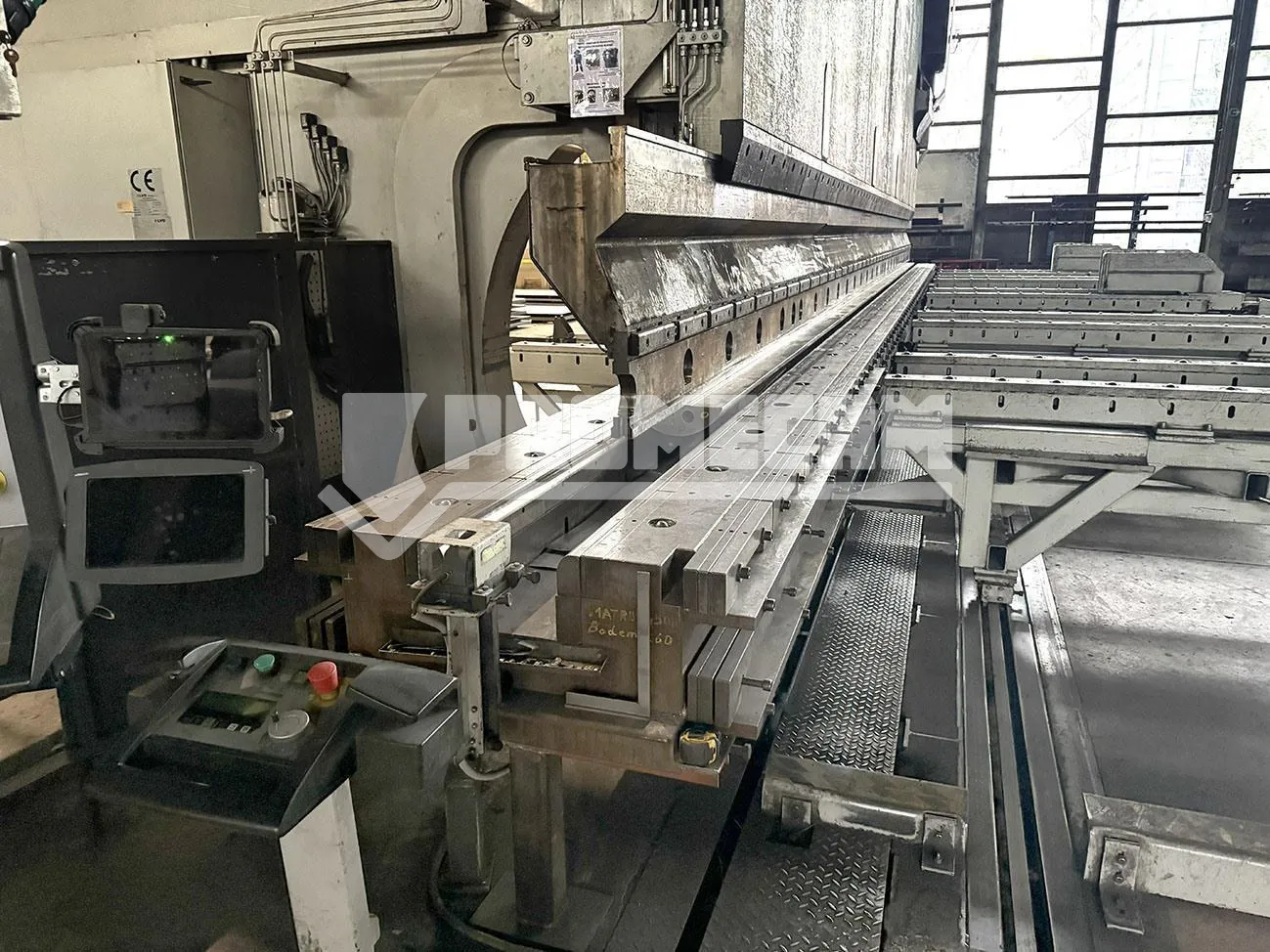

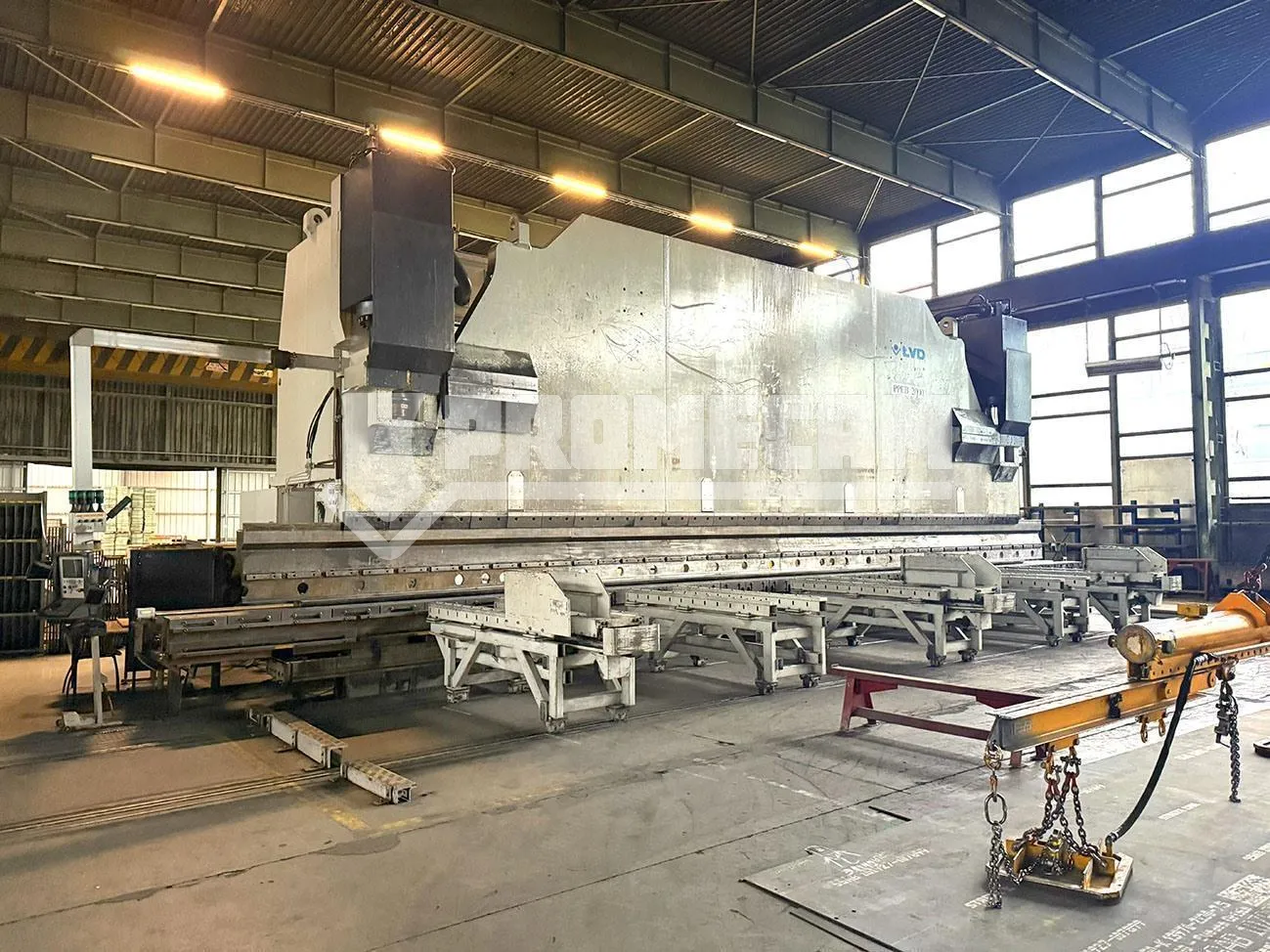

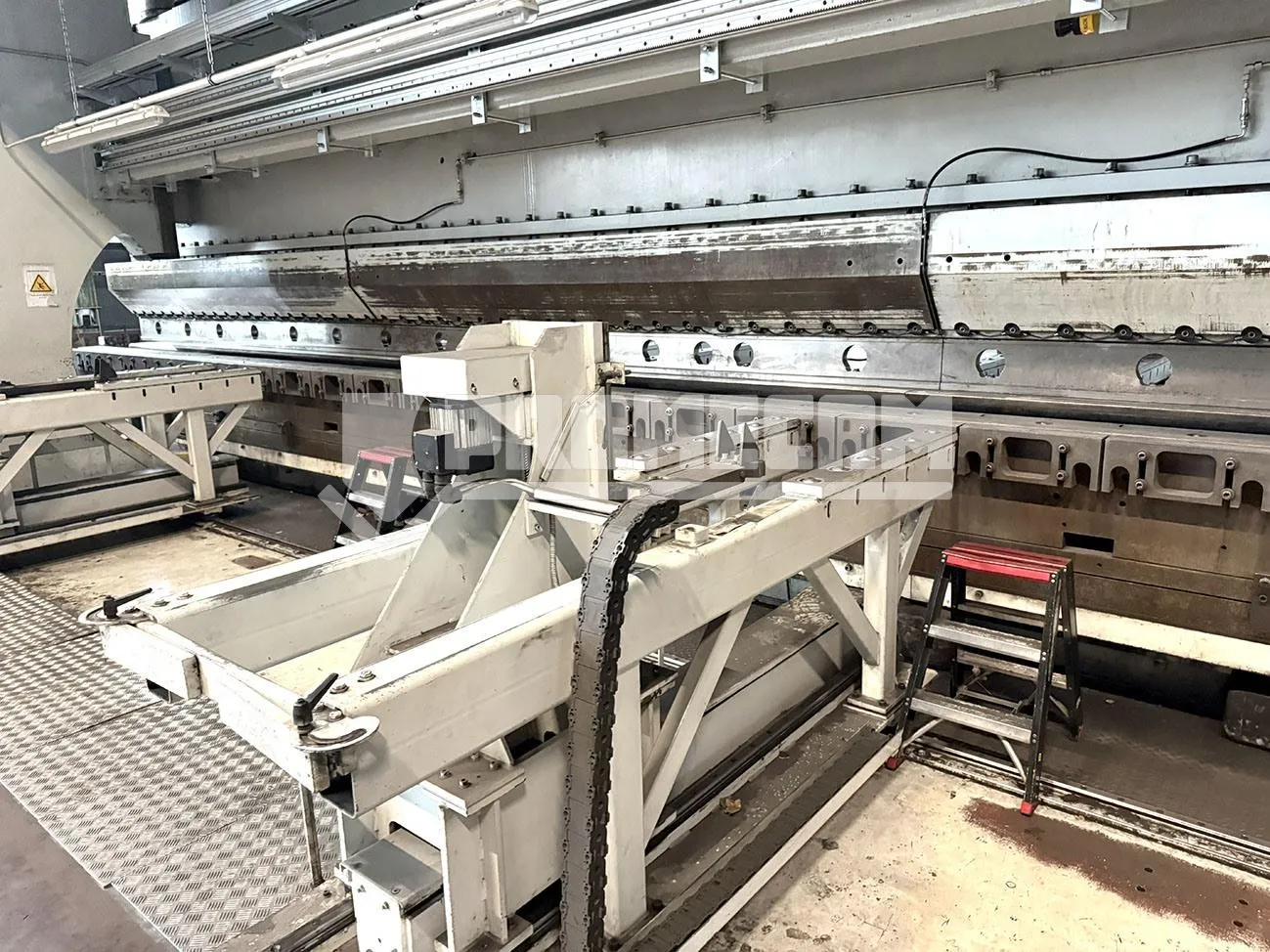

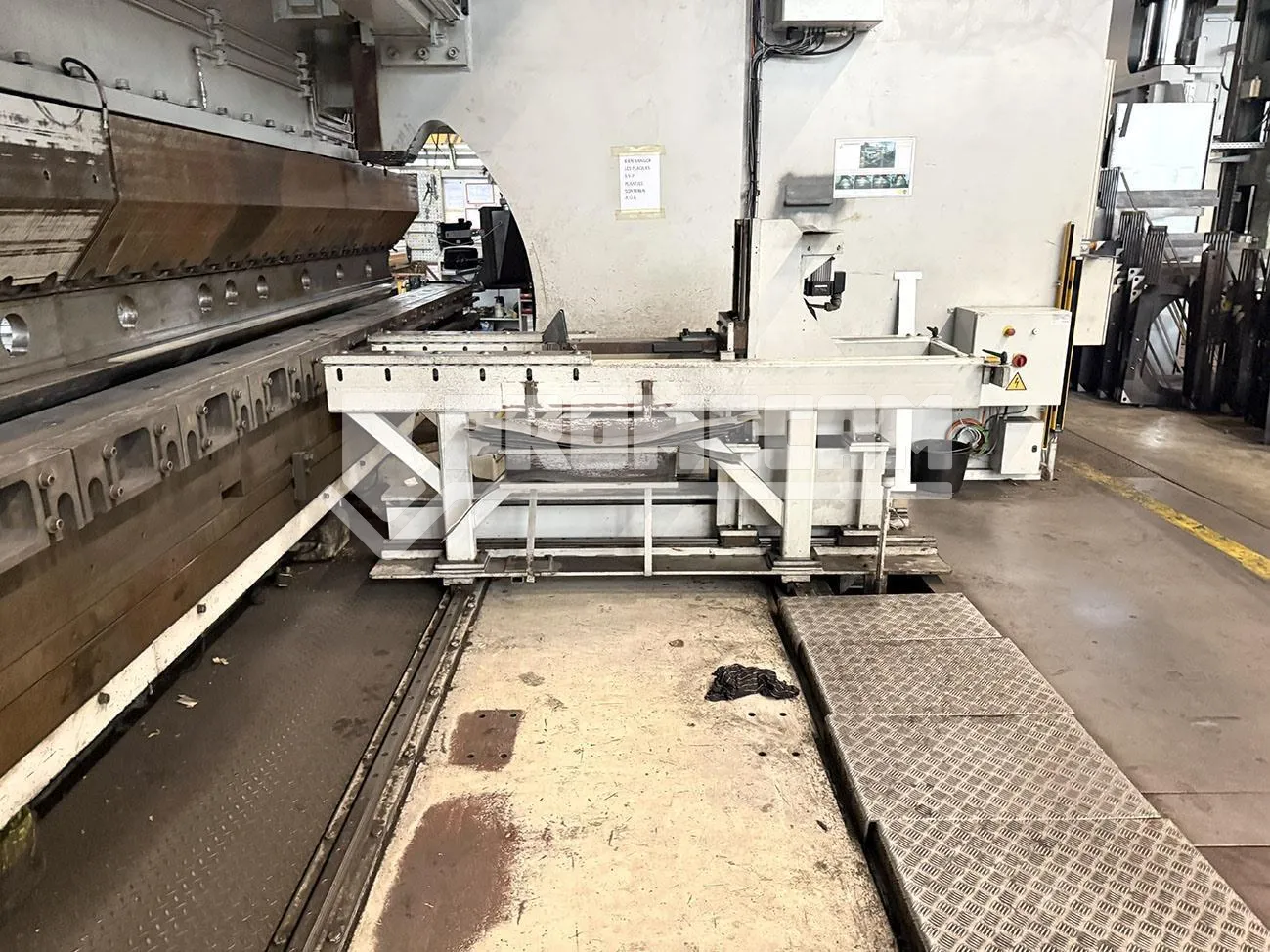

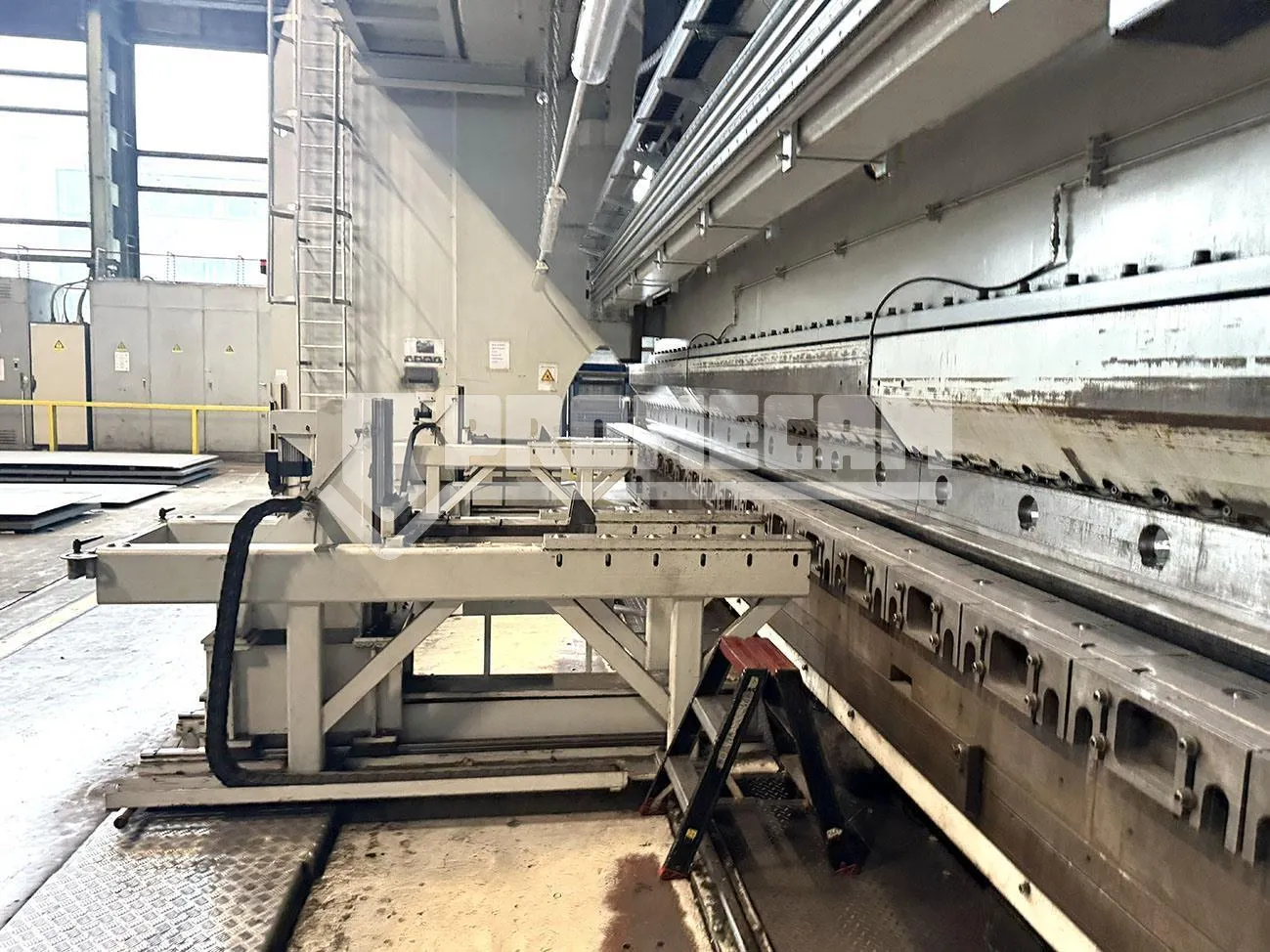

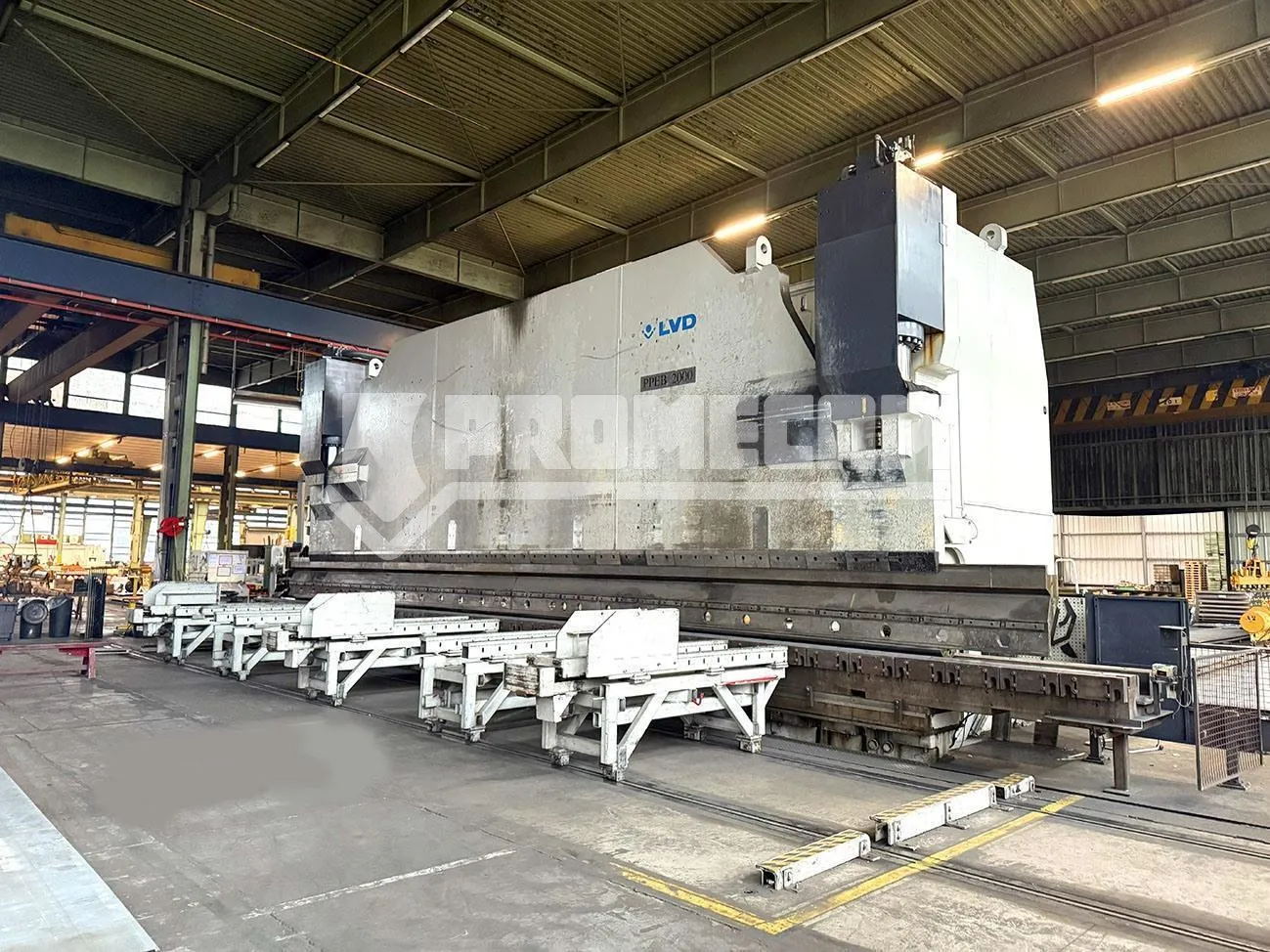

This impressive machine offers a bending capacity of 2,000 tonnes over a length of 14 metres, with a generous throat depth of 12,470 mm. The system is operated by a 2D Touch control unit that coordinates the CNC backgauge, 9 axes (Y1, Y2, X, R, Z, V, X1, X2, X3) and three front sheet feeders. From a structural and operational perspective, the press has a maximum stroke of 900 mm, a table-to-ram distance of 1600 mm, a die depth of 1255 mm and a table width of 800 mm. The bending dynamics ensure an approach speed of 77 mm/sec, a working phase at 9 mm/sec and a rapid return at 85 mm/sec, all powered by two 90 kW electric motors. Weighing in at a substantial 370 tonnes, the structure requires considerable installation space, measuring 16,835 mm in length, 5,695 mm in depth and reaching a height of 6,750 mm above floor level.
| Bending force | 2000 t |
|---|---|
| Bending length | 14000 mm |
| CNC | 2D touch |
| Distance between uprights | 12470 mm |
| Y axis stroke | 900 mm |
| Distance between bench and ram | 1600 mm |
| Throat | 1255 mm |
| Bench width | 800 mm |
| Y downward speed | 77 mm/s |
| Y working speed | 9 mm/s |
| Y upward speed | 85 mm/s |
| Main motor power | 2×90 kW |
| Width | 16835 mm |
| Depth | 5695 mm |
| Height above floor level | 6750 mm |
| Weight | 370 ton |
