Manufacturer: MORI SEIKI
Model: NL 3000 y/700
Year: 2008

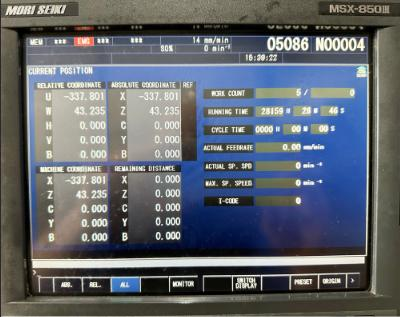

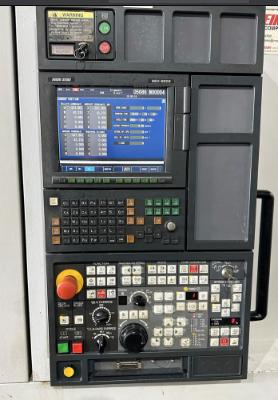

Numerical control: MSX850-III
electronic jog
Chip conveyor

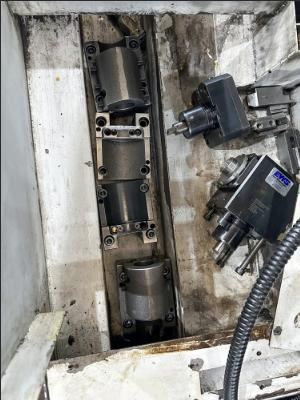

Rotating head
Infrared probe
Rotating display windows
Operating mode 4
Air jet through spindle centre selectable via M function
3D QUICK SETUP
Cooling system
Disassembly and truck loading included.
| X axis stroke | 280 mm | ||
|---|---|---|---|
| Y axis stroke | ±60 mm | ||
| Z axis stroke | 820 mm | ||
| Rotation length | 713 mm | ||
| Rotation diameter | 420 mm | ||
| Plane rotation diameter | 995 mm | ||
| Rotation diameter on carriage | 825 mm | ||
| Working capacity with bar | 90 mm | ||

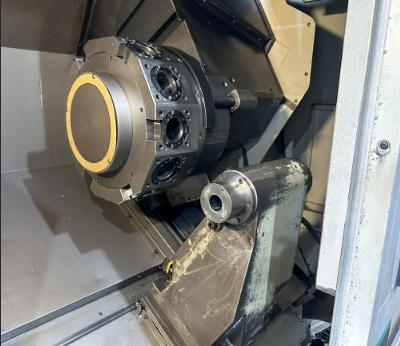

| UPPER TURRET | |||
| Number of tool positions | 10 | ||
| Maximum motorised tool rotation | 6000 rpm | ||
| Indexing of driven tools | 0,3 seconds | ||

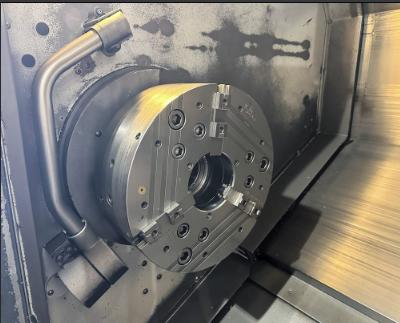

| MAIN SPINDLE | |||
| Maximum tool rotation | 3000 rpm | ||
| Spindle diameter | 105 mm | ||
| Spindle type | 12 | ||
| Spindle taper | JIS A2-8 | ||
| COUNTERSPINDLE | |||
| Tailstock stroke | 734 mm | ||
| Spindle taper | MT-5 | ||
| Tank capacity | 300 litri | ||

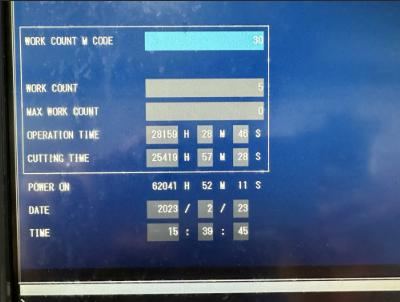

| Operating hours | 62041 hours | Pin n. 1 | 28159 hours |
| Total power requirement | 48 kVA | ||
| Length | 3418 mm | ||
| Depth | 2089 mm | ||
| Height | 2270 mm | ||
| Weight | 6500 kg |
